Hydraulic Valves

NOTE: SCV at Rear of Tractor: SMV sign removed for photographic purposes.

Mid-Mount Valve (If Equipped): Front access panel removed for photographic purposes.

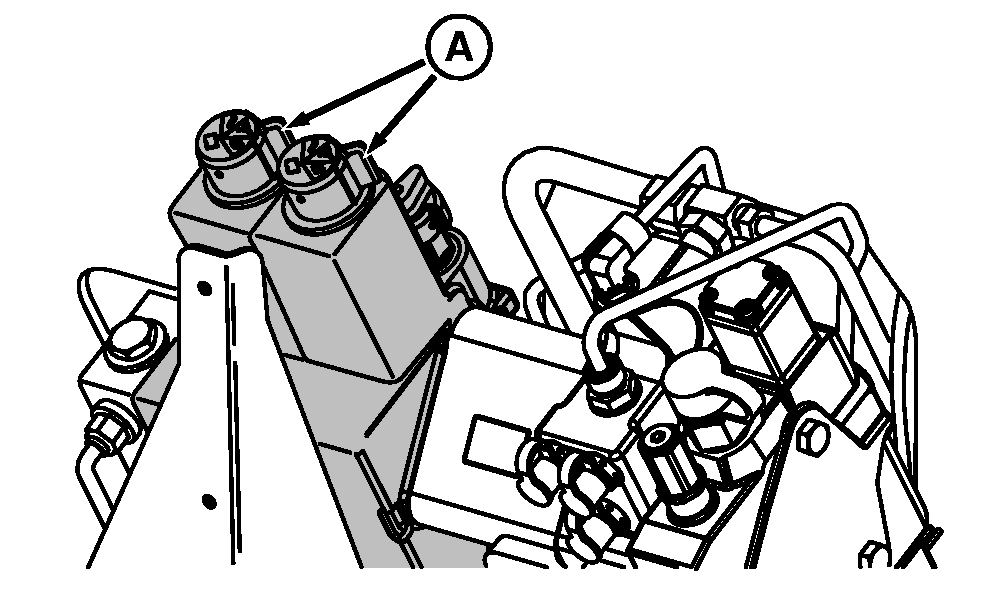

Tractor can be equipped with up to four selective control valve sections (A) at rear of tractor.

An electrohydraulic multi-function control lever and independent control valve (B) (located under cab on right-hand side) is also available to operate additional equipment such as a loader or front hitch. (See OPERATING ELECTROHYDRAULIC MULTI-FUNCTION CONTROL LEVER in Operating Tractor section.)

An single lever control and mechanical independent control valve (C) (located under cab on right-hand side) is also available to operate additional equipment such as a loader or front hitch. (See OPERATING SINGLE LEVER CONTROL in Operating Tractor section.)

A-Selective Control Valves
B-Mid-Mount Independent Control Valve

OUMX005,00015D7 -19-23MAY05-1/1
