Using Correct Engine Speed

Correct engine speed is very important. Run engine at 1950 engine rpm for both 540 and 1000 rpm PTO speed operation.

If equipped with 3-speed PTO (7720); Run engine at:

  • 1750 rpm-540E and 1000E PTO
  • 1950 rpm-1000 PTO

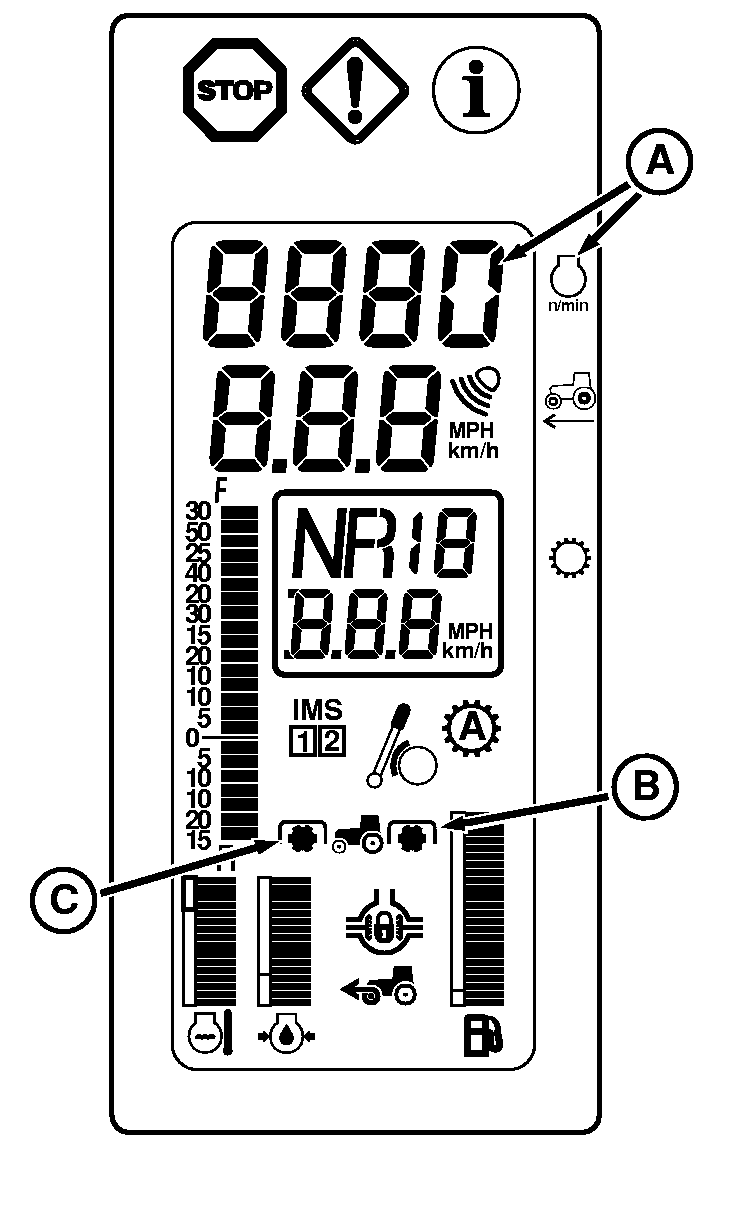

A-Tachometer
B-PTO Indicator-Rear
C-PTO Indicator-Front (If Equipped)

RXA0068363

OUMX005,00015E1 -19-08APR03-1/1
