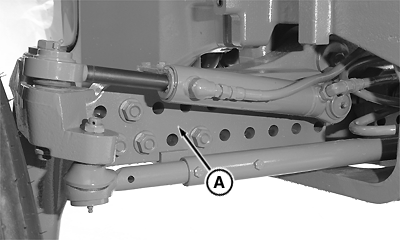

Non-Driving Front Axle Tread Settings-StandardFront axles (A) have seven standard tread settings: |
|
| Tire Size | Valve Stem Location | Axle Position mm (in.) |
||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-16 | Out | 1525 (60) | 1627 (64) | 1729 (68) | 1831 (72) | 1933 (76) | 2035 (80) | 2137 (84) |
| In | 1625 (64) | 1727 (68) | 1829 (72) | 1931 (76) | 2033 (80) | 2135 (84) | 2237 (88) | |
| 11.00-20 11.00-24 |
Out | 1525 (60) | 1627 (64) | 1729 (68) | 1831 (72) | 1933 (76) | 2035 (80) | 2137 (84) |
| In | 1625 (64) | 1727 (68) | 1829 (72) | 1931 (76) | 2033 (80) | 2135 (84) | 2237 (88) | |
| 14L-16.1 | Out | 1575 (62) | 1677 (66) | 1779 (70) | 1881 (74) | 1983 (78) | 2085 (82) | 2187 (86) |
| 16.5L-16.1 | Out | 1660 (65.5) | 1762 (69.5) | 1864 (73.5) | 1966 (77.5) | 2068 (81.5) | 2170 (85.5) | 2272 (89.5) |
