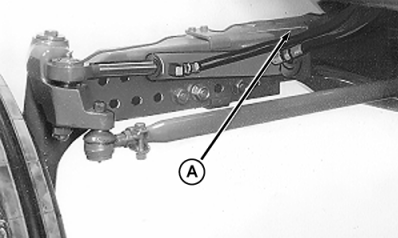

Non-Driving Front Axle Tread Settings-With ExtensionsFront axles (A) have seven tread settings with extensions. |
|
| Tire Size | Valve Stem Location | Axle Position mm (in.) |
||||||
|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| 11.00-16 | Out | 1970 (77.5) | 2072 (81.6) | 2174 (85.6) | 2276 (89.6) | 2378 (93.6) | 2480 (97.6) | 2582 (101.7) |
| 11.00-20 11.00-24 |
Out | 1970 (77.5) | 2072 (81.6) | 2174 (85.6) | 2276 (89.6) | 2378 (93.6) | 2480 (97.6) | 2582 (101.7) |
| 14L-16.1 | Out | 2020 (79.5) | 2122(83.5) | 2224(87.6) | 2326(91.6) | 2428(95.6) | 2530 (99.6) | 2632 (103.6) |
| 16.5L-16.1 | Out | 2105 (82.9) | 2207 (86.9) | 2309 (90.9) | 2411 (94.9) | 2513 (98.9) | 2615 (103) | 2717 (107) |
