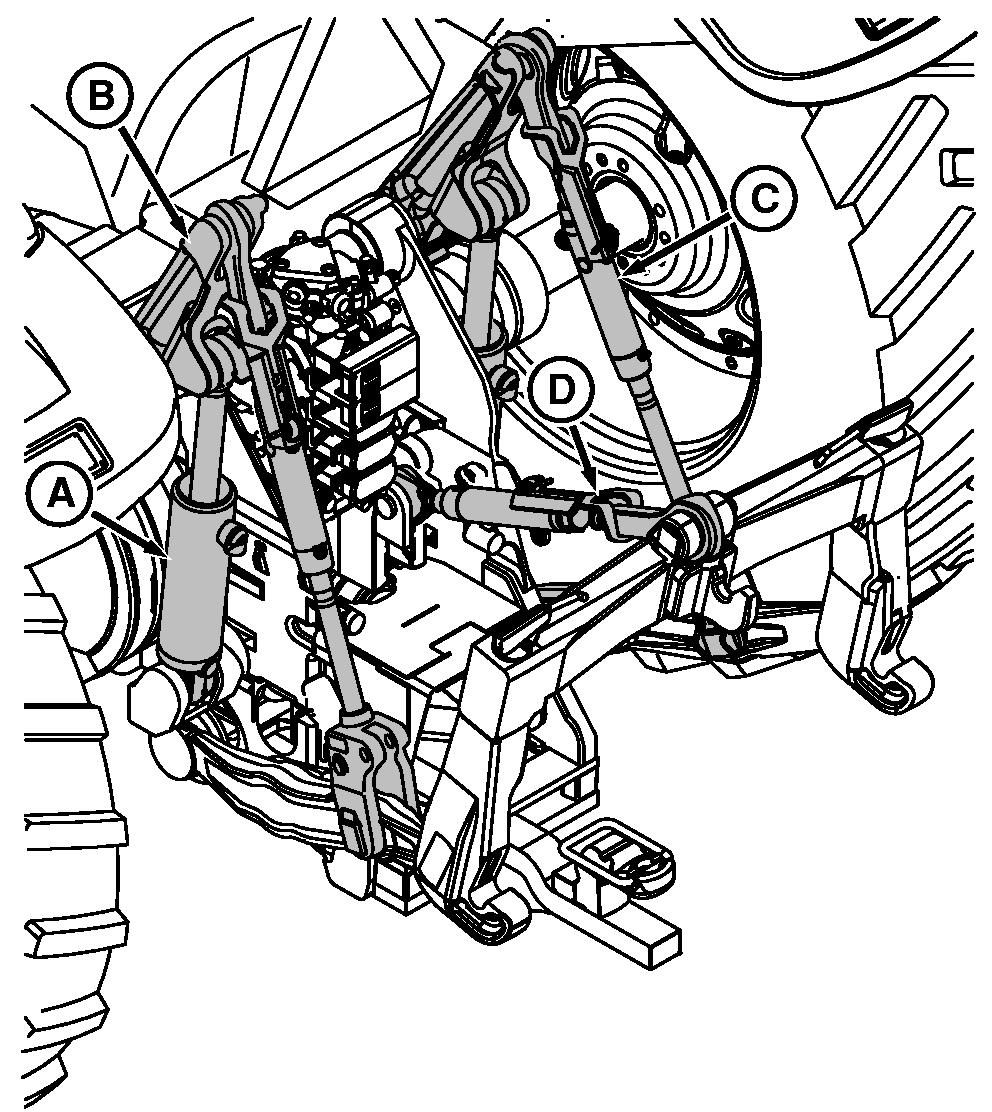

Lubricate hitch components (A-D).
Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.
A-Lift Cylinder (2 fittings, each cylinder) B-Rockshaft (1 fitting, each side) C-Lift Link (2 fittings, each link) D-Center Link -(10050 lb Hitch-2 fittings) -(14000 lb Hitch-1 fitting)
OUMX005,0001632 -19-02JUN05-1/1
