Accessing Fuses and Relays

IMPORTANT: Replace fuses with fuses of same rating as original.

DO NOT install fuses in F2 and F3 locations. This will cause park brake to be released in tractors equipped with IVT transmission. (See RELEASING PARK BRAKE [ IVT TRANSMISSION] in Transporting section.)

NOTE: A fuse and relay reference label is provided inside cover.

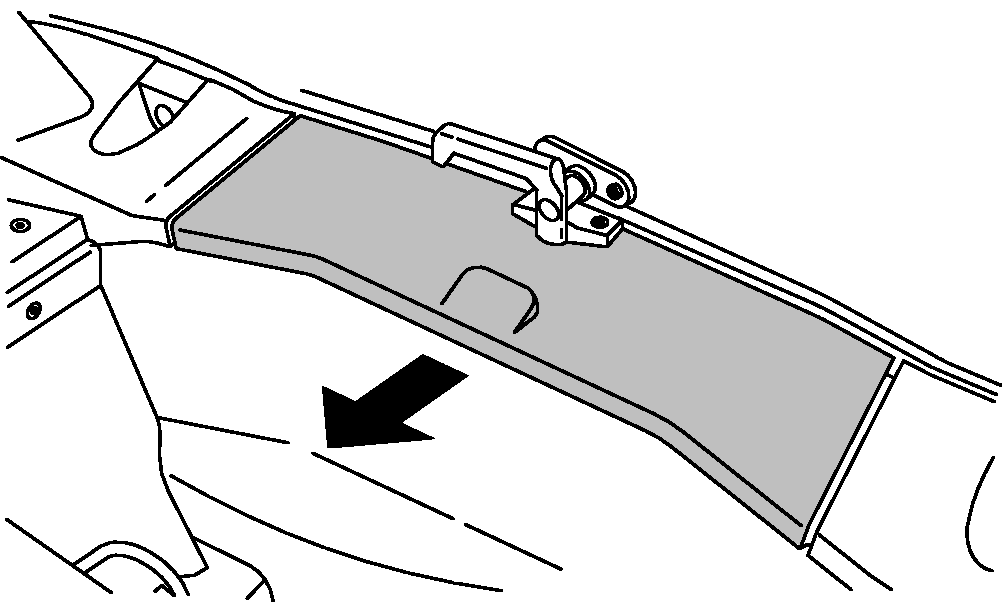

Remove cover (A) to access main fuse and relay load center.


A-Cover

RXA0068491

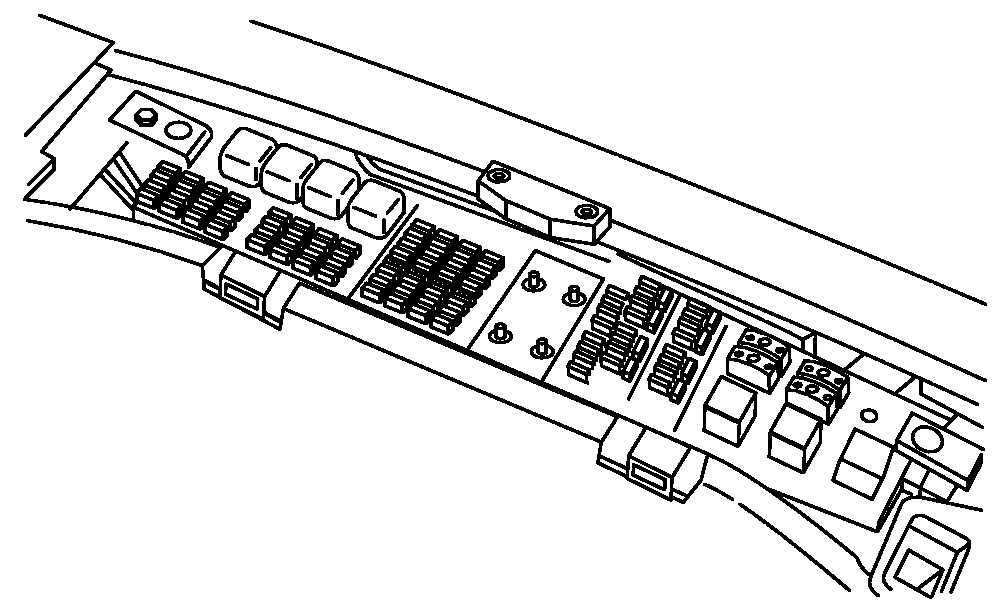

Cover Below Rear Window

RXA0068492

OUMX005,000164E -19-22MAR05-1/2

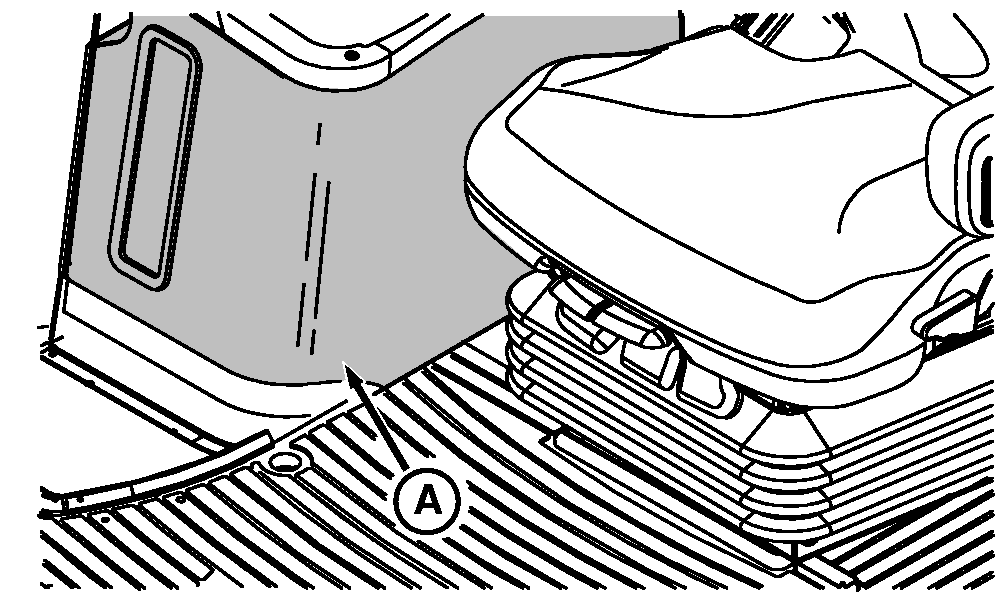

Remove cover (A) to access lights, wipers and A/C relays.


A-Cover

RXA0068493

OUMX005,000164E -19-22MAR05-2/2
