Replacing HID Driving Light Element (if Equipped)

IMPORTANT: Before replacing bulb reference "Handling HID Light Bulbs Safely" in this section of manual.

1. Raise hood.

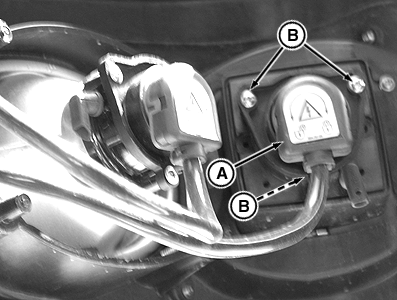

2. Twist and remove bayonet connector (A).

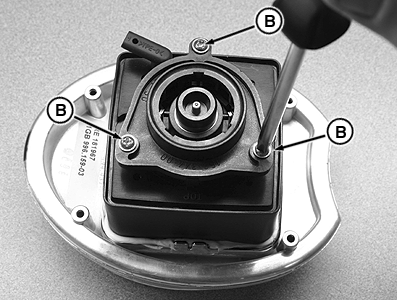

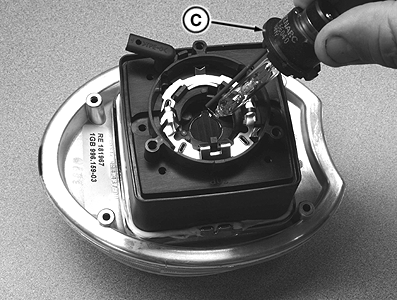

3. Remove 3 screws (B), retainer and remove light element (C)

4. Install new element in reverse order of removal.

5. Adjust headlights, if necessary. (See procedure in this section.)

A-Bayonet Connector
B-Screws
C-Light Element

OUMX005,0001653 -19-27JUL05-1/1
