Replacing Cab Roof Hazard Light Bulbs

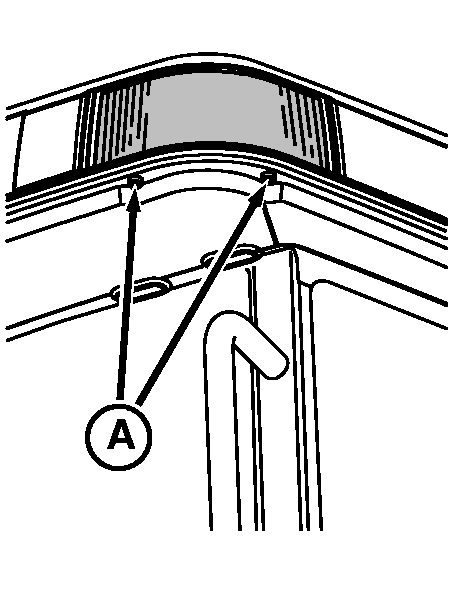

1. Remove screws (A) and light assembly.

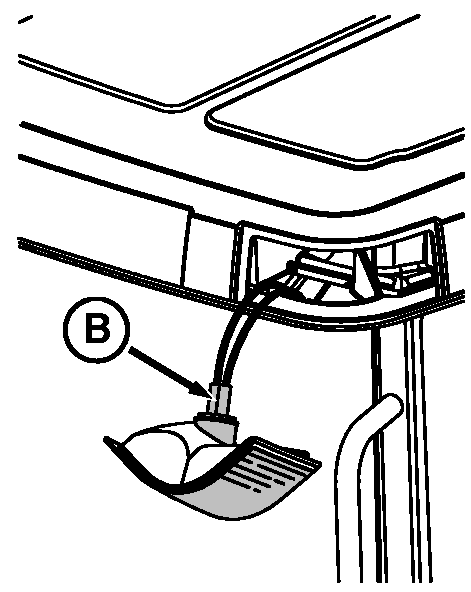

2. Rotate retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Pull bulb straight out to remove.

4. Install new bulb in reverse order of removal.


A-Screws
B-Light Bulb Retainer

RXA0068501
RXA0068502

OUMX005,0001659 -19-25FEB05-1/1
