Replacing Tail Light Bulb

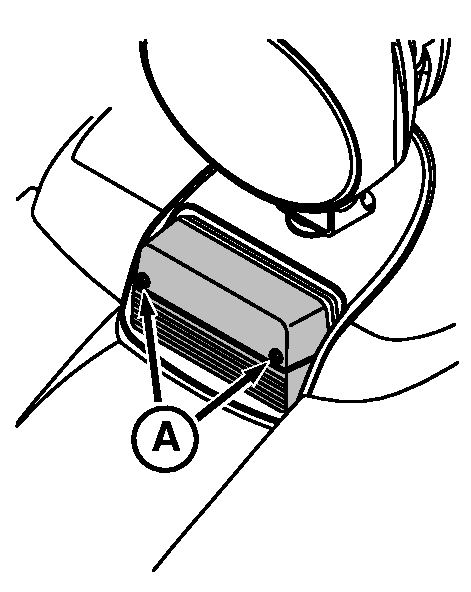

1. Remove screws (A) and light assembly.

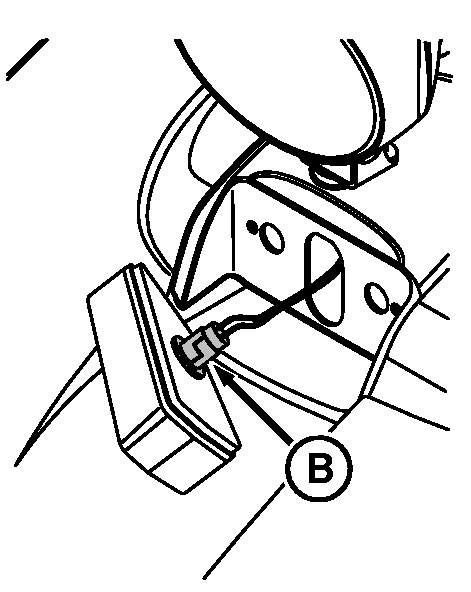

2. Rotate retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Pinch and pull light bulb out.

4. Install new bulb in reverse order of removal.


A-Screws
B-Light Bulb Retainer

RXA0068506
RXA0068507

OUMX005,000165A -19-23MAY03-1/1
