Replacing Extremity Warning Light Bulb (If Equipped)

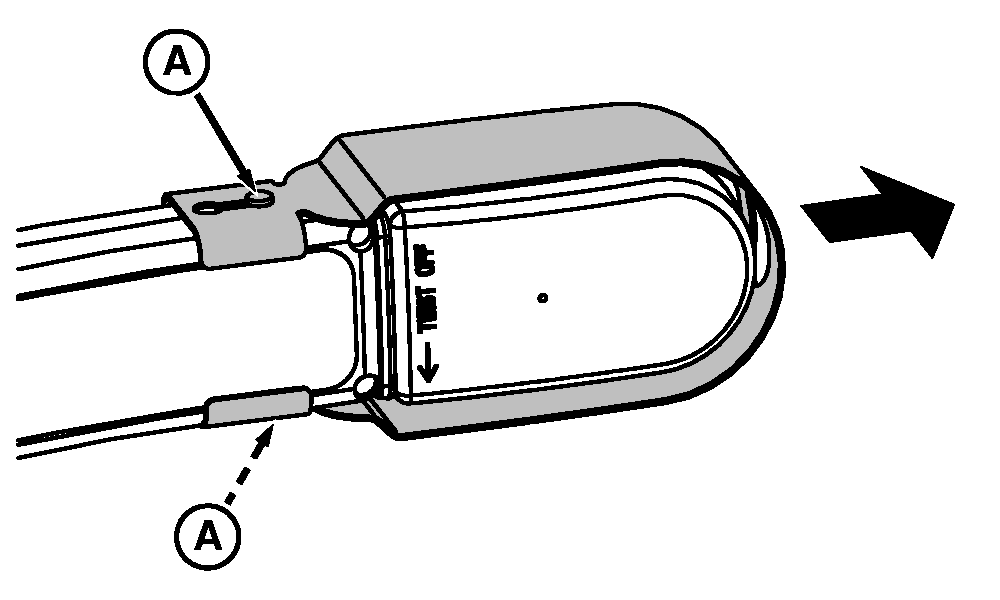

1. Loosen screws (A).

2. Slide shield away from lens cover to remove.

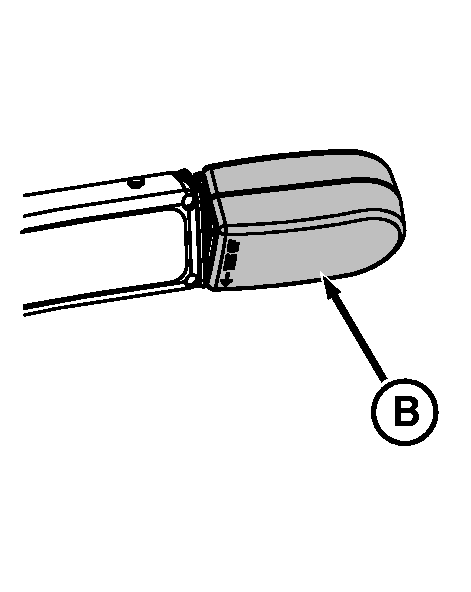

3. Turn lens cover (B) counterclockwise to remove.

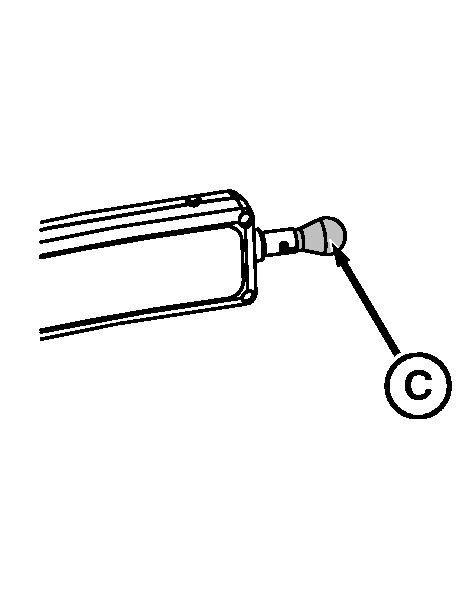

4. Push in and turn counterclockwise to remove light bulb (C).

5. Install new bulb in reverse order of removal.


A-Screws
B-Lens Cover
C-Light Bulb

RXA0068524
RXA0068525
RXA0068526

OUMX005,000165F -19-12SEP03-1/1
