Transporting on Carrier

causym CAUTION: To avoid accident or injury, securely chain the tractor to carrier. Do not wrap chain around mechanical front wheel drive shaft or axle housing. Drive carefully.

IMPORTANT: A disabled tractor should be hauled on a flat-bed carrier.

Attach chain to support/loop (A) on front axle when securing tractor to carrier.


A-Support/Loop

RXA0068372

Non-Driving Axle (2WD)

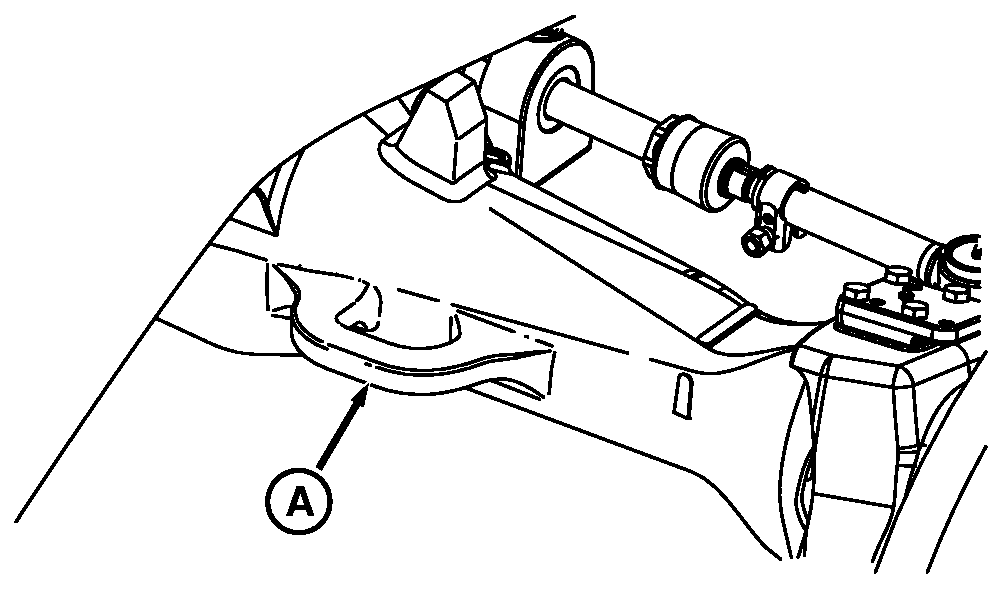

RXA0068373

MFWD Axle

OUMX005,000169B -19-06JUN03-1/1
