Adjusting Non-Driving Front Axle

IMPORTANT: Do not place jack under engine oil pan.

1. Jack up front end of tractor.

2. Remove cap screws and nuts (A and B) from tie rod and axle.

3. Slide axle knee to desired position and tighten cap screws (B) to specifications.

Specification

Axle Knee Cap Screws (B) -Torque 600 N·m (445 lb-ft)

4. Install cap screws and nuts (A) in tie rod making sure tie rod is changed same amount as axle.

5. Adjust other side using the same procedure. Both sides should normally have the same spacing.

6. Check toe-in and adjust as required.

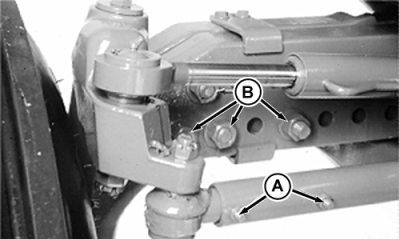

RW21367A

Left-Hand Side Shown


A-Cap Screws and Nuts
B-Cap Screws and Nuts

OUMX005,00016CD -19-21JUN03-1/1
