Tightening Front Wheel and Axle Bolts-Non-Driving Front Axle

causym CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts. Wheel bolts are critical and require retightening.

Specification

Axle Mounting Bolts (A) -Torque 600 N·m (445 lb-ft)
Wheel Bolts (B) -Torque 310 N·m (230 lb-ft)

Drive tractor 100 meters (100 yd) and retighten bolts.

Retighten bolts after working 3 HOURS , 10 HOURS , and DAILY for the first week of operation.

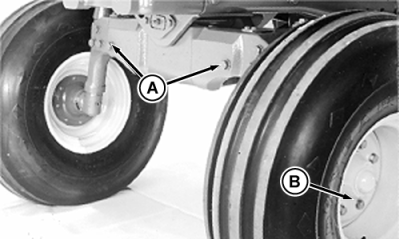

RW21364A


A-Axle Bolts (4 each side)
B-Wheel Bolts

OUMX005,00016CE -19-21JUN03-1/1
