Replacing Headlight and Front Grille Floodlight Element

1. Raise hood.

2. Disconnect wiring harness plug (B).

3. Rotate element (A) counterclockwise approximately 1/4 turn and remove.

4. Install element in reverse order of removal.

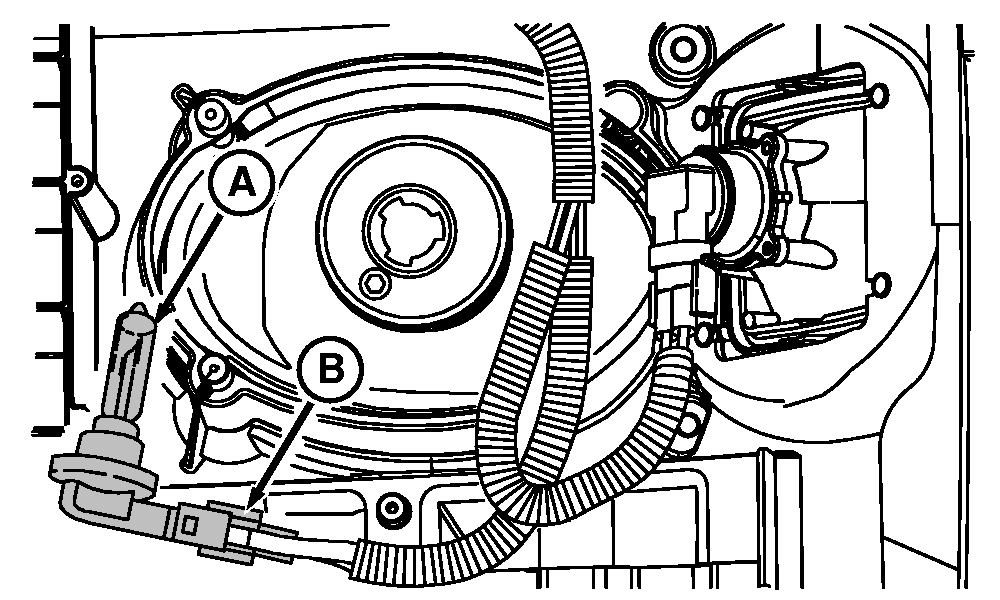

A-Element
B-Wiring Harness Plug

RXA0068499

Right-Hand Side Shown

OUMX005,000170A -19-10JUL03-1/1
