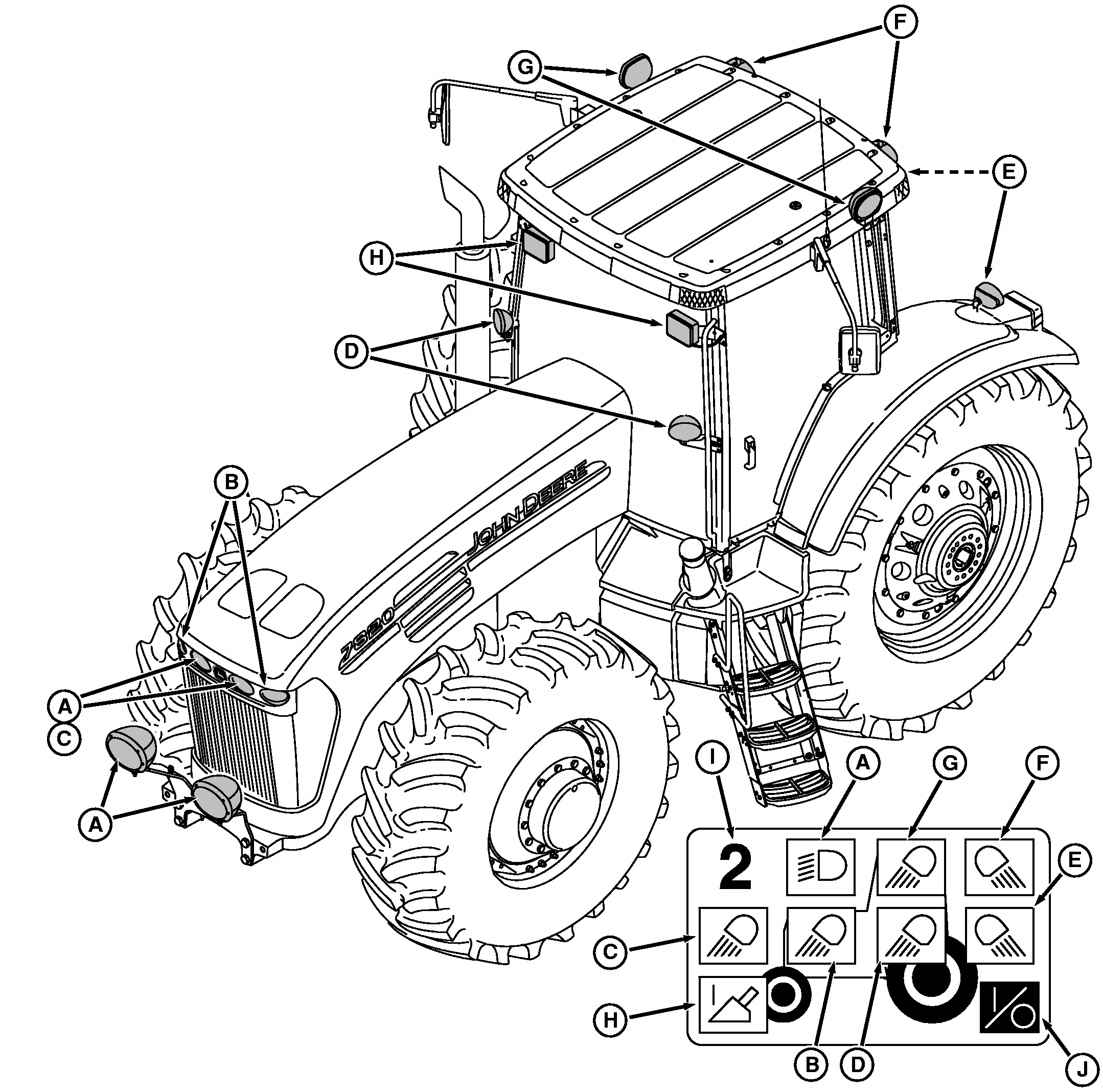

Headlight/Floodlight Identification and CommandCenter Indicators

Field 2 Position Shown with ALL Lights ON

A-Driving Lights, High/Low Beam (See Note)
B-Floodlights, Front Outer (Standard or HID-Xenon)
C-HID-Xenon Floodlights, Front Inner (If Equipped) (See Note)

D-Floodlights, Cab Beltline
E-Floodlights, Fender Rear (Standard or HID-Xenon)
F-Floodlight, Cab Roof Rear

G-Floodlights, Cab Roof Side (If Equipped)
H-Loader Lights, High/Low Beam (If Equipped)

I-Indicator, Switch Position
J-Indicator, ON/OFF

OUO1011,000538B -19-15AUG05-1/2

NOTE: High Intensity Discharge (HID-Xenon) floodlights (C) are installed in place of standard high/low beam driving lights (A) and outer front floodlights. With HID-Xenon lights

installed in the hood, standard high/low beam driving lights are relocated to the weight bracket or loader grille guard (if equipped).
