Programming Headlights and Floodlights
|
|
|
|
|
|
|
|
Operation of all clear-lens lighting (headlights and floodlights) is programmable using the light switch and CommandCenter. See HEADLIGHT/FLOODLIGHT IDENTIFICATION AND COMMANDCENTER INDICATORS for further information on lights and display indicators. |
Light display shows for 10 seconds whenever light switch position is changed. If no programming changes are made, display returns to last screen shown. Light indicators change from black-to-white when programmed ON. |
OUO1011,000538C -19-01MAY03-1/2 |
|
O-OFF Position:

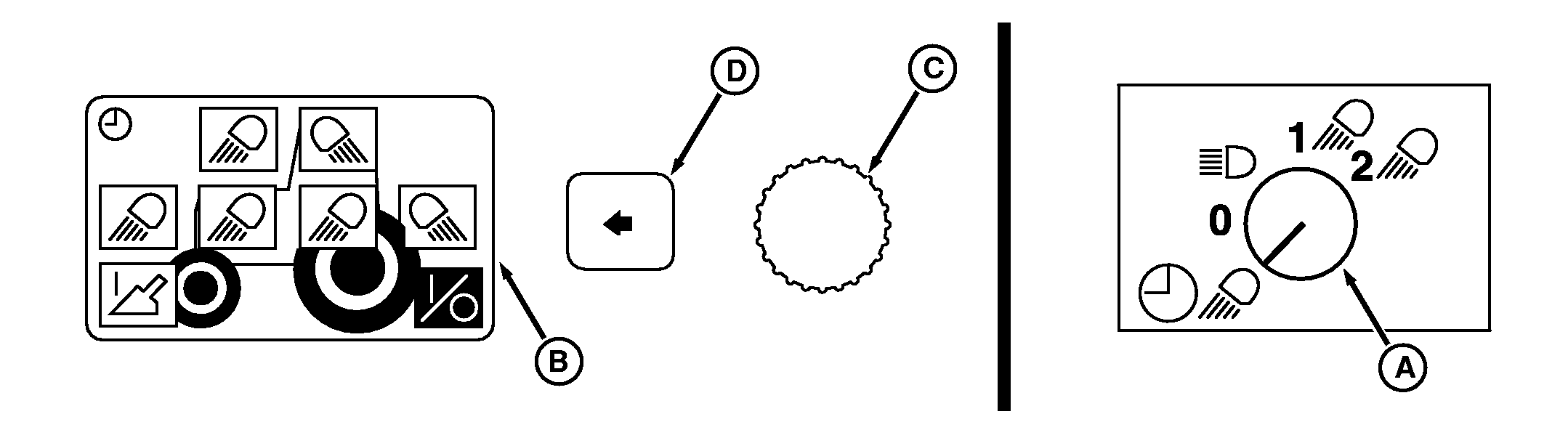

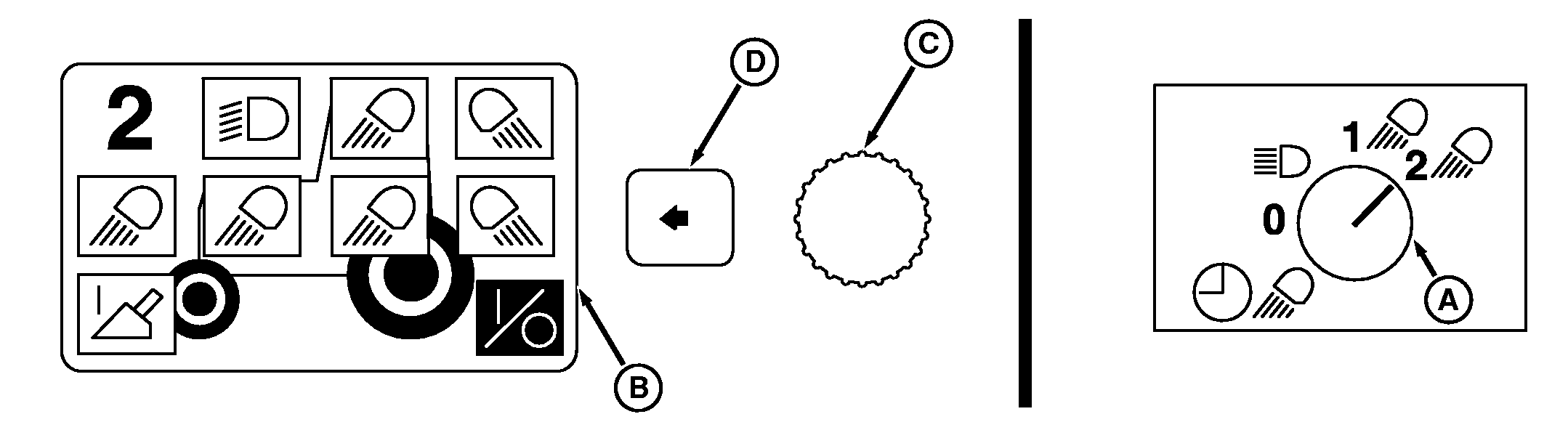

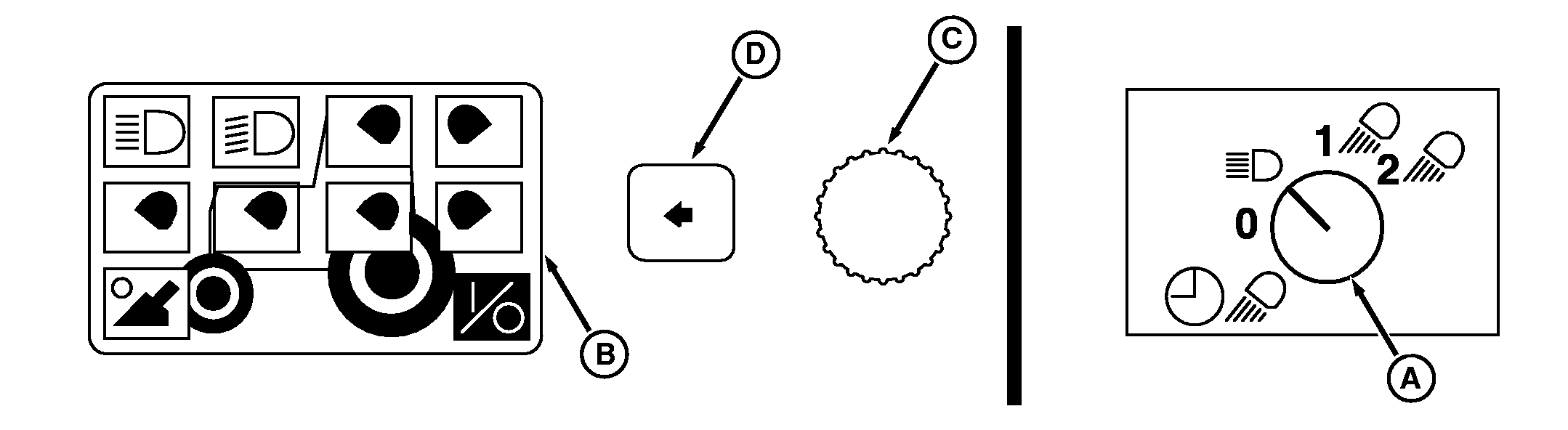

In the "O" (OFF) position, all clear-lens lighting is programmed OFF (all black indicators). Road, Field 1 and 2 Positions:Turn light switch knob (A) to desired position and observe CommandCenter display (B); black lights are OFF, white lights are ON. Road position is only programmable when tractor is equipped with loader lights. If loader lights are not installed, CommandCenter screen will not change to show lighting display. See LOADER LIGHTS AND COMMAND CENTER INDICATOR (IF EQUIPPED) for further information. All clear-lens lights are selectable when programming Field 1 or 2 positions. |
Rotate Command dial (C) to highlight desired light, then press select switch (D) to turn light ON (white indicator) or OFF (black indicator). Changes to ON/OFF settings take place immediately. Normally one field light position is programmed to operate only certain lights, such as rear facing floodlights, while the other position is used to operate all clear-lens lighting. Egress (Delayed Shutdown) Position (If Equipped):Turn light switch knob to Egress (clock) position and observe CommandCenter display. Programming Egress lighting is the same as Field lighting with all clear-lens lights selectable. Only operator selected clear-lens lights will come ON when switch knob is moved to Egress (Delayed Shutdown) position. |
