Using Extremity Transport Warning Lights (If Equipped)

CAUTION: Extremity transport warning lights (A) are needed when tractor width exceeds 3.7 m (12 ft). Always use road lights and hazard warning lights when operating tractor on a road or highway at night OR during the day. Extremity transport warning lights alert other vehicles of your extended width.

IMPORTANT: To avoid damage, extremity warning lights may be retracted for single tire operation, for operation in brushy conditions, or when parking tractor in storage building.

Extremity lights operate with hazard switch in "ON" position.

Adjust extremity warning lights (A) no more than 400 mm (16 in.) from widest point of tractor.

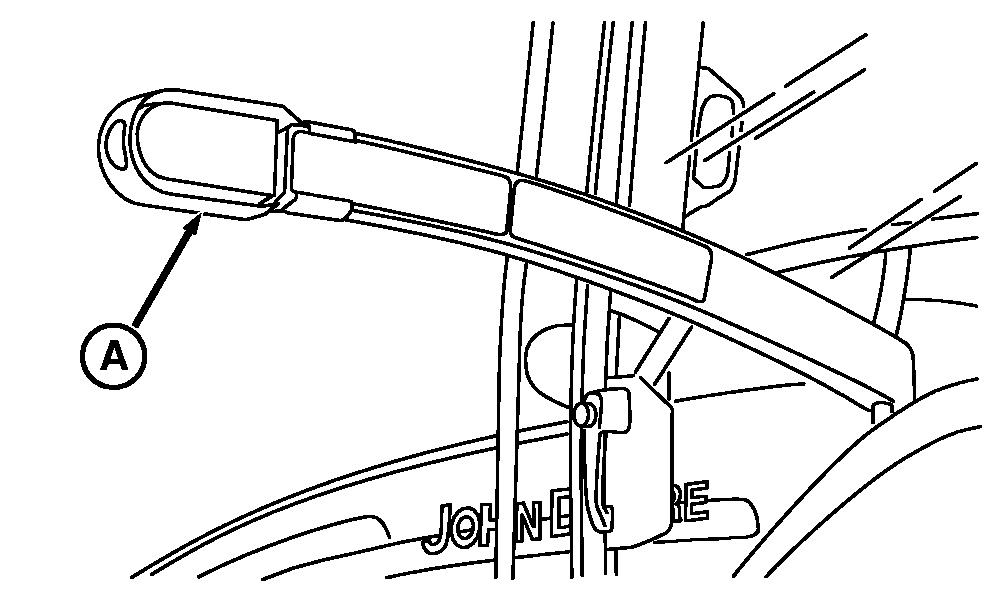

A-Extremity Warning Light

OUO1011,0005390 -19-01MAY03-1/1
