Adjusting Personal Posture Seat

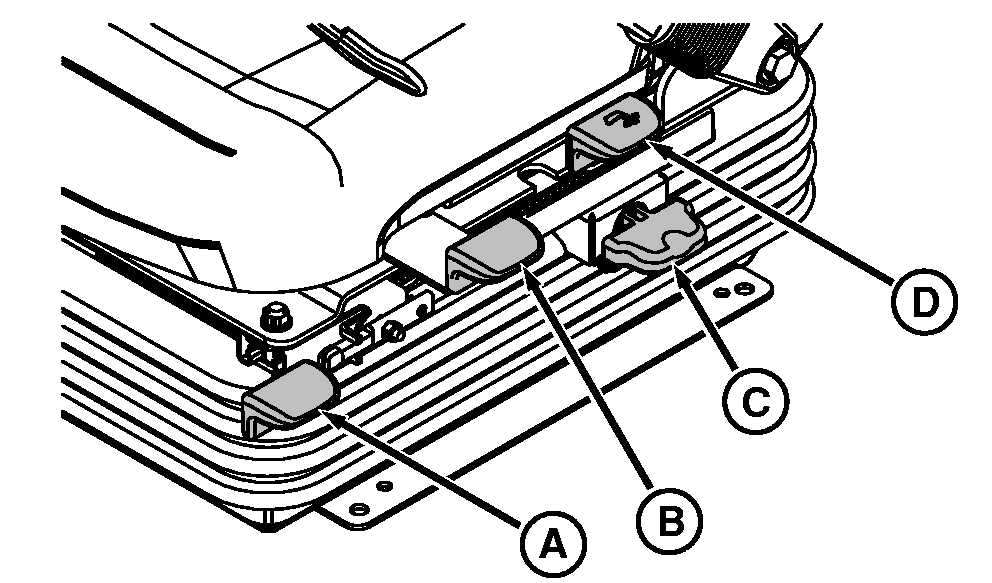

Fore/Aft Seat Position: Pull up on handle (A) to allow seat to slide forward or backward.

Pivot Lock: Pull up on handle (B) to allow seat to pivot. Release handle to lock seat in position.

Height Adjustment: Turn key to ON position. Lift lever (C) to raise seat; push down to lower seat.

Backrest Angle Lock: Pull up on handle (D) and push against backrest to recline or remove weight, allowing seat-back to return to straighten-up position.

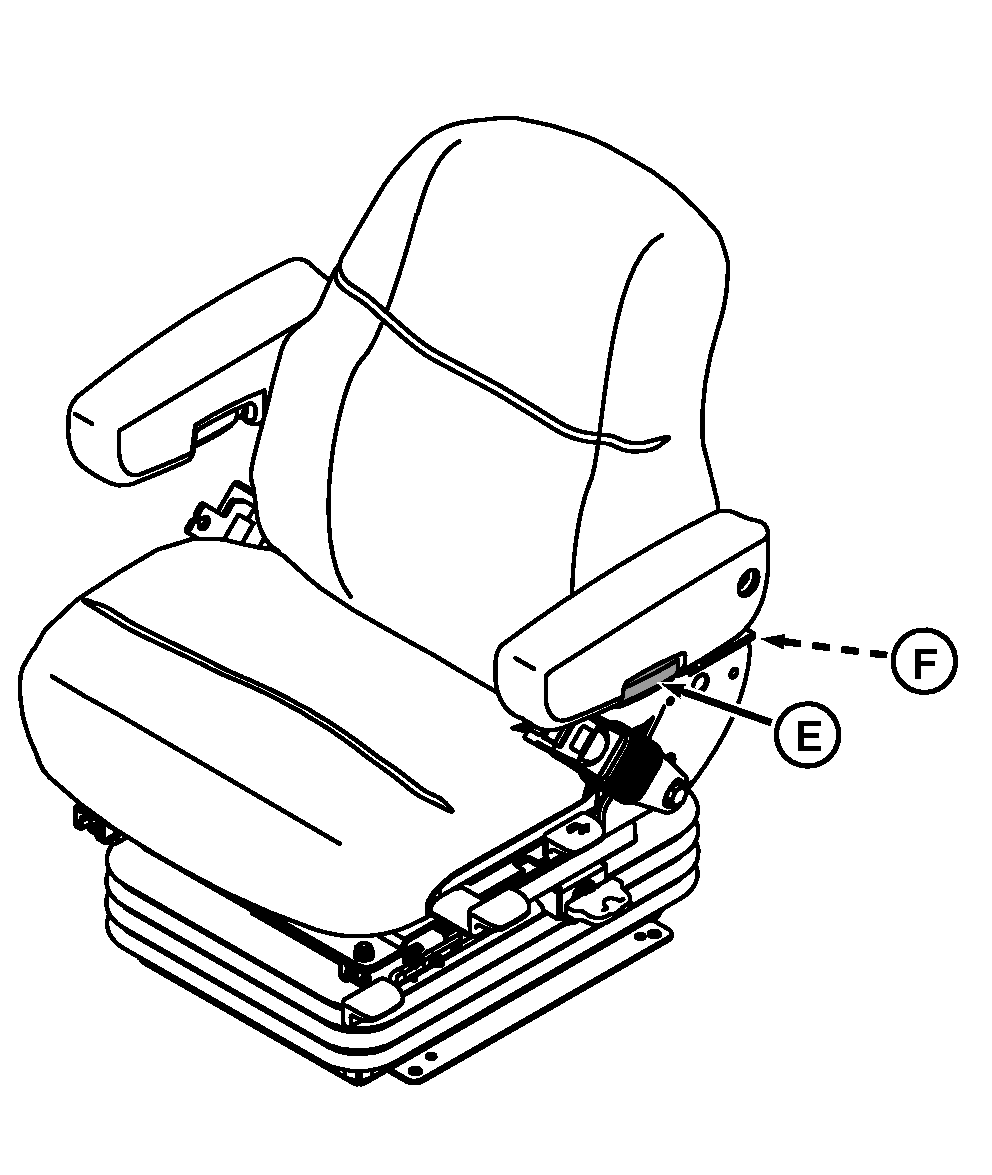

Armrest Angle: Rotate knob (E) to adjust armrest angle.

Lumbar Support: Rotate wheel (F) to adjust lumbar support.

A-Fore/Aft Handle
B-Pivot Lock Handle
C-Height Adjustment Lever
D-Backrest Angle Handle
E-Armrest Knob
F-Lumbar Support

OUO1011,00053D0 -19-01MAR05-1/1
