Setting Hitch Height Limit

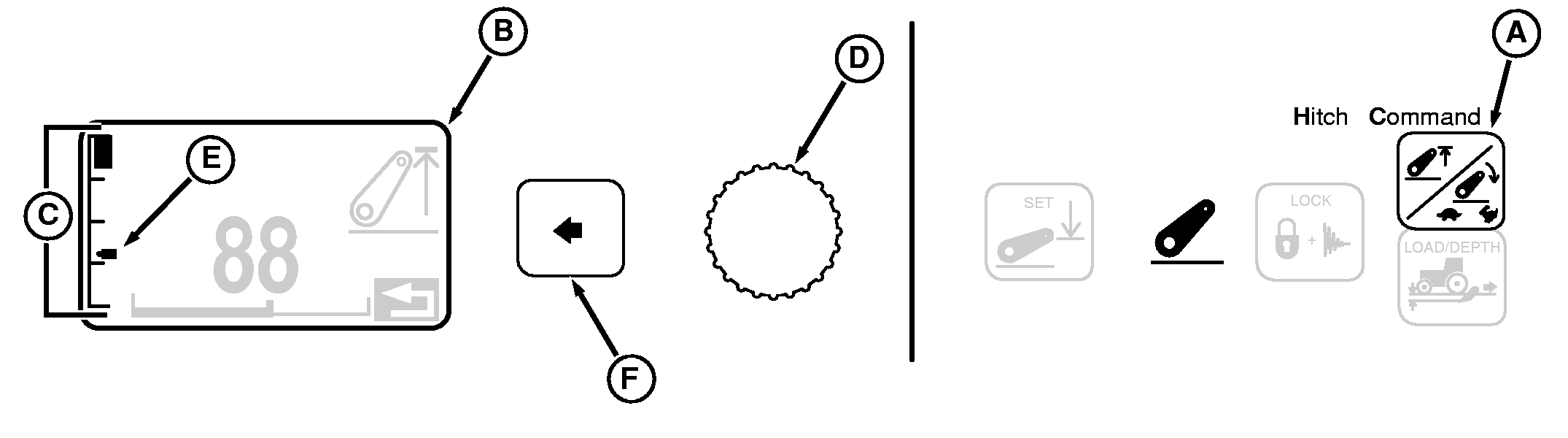

RXA0068115


A-Height/Rate Switch
B-CommandCenter Display


C-Height Bargraph
D-Command Dial


E-Hitch Position Indicator


F-Select Switch

Hitch height limit is adjusted in the CommandCenter.

1. Press HEIGHT/RATE switch (A) once and observe display (B); current height setting appears as a bargraph (C) on left-hand side.

2. Turn command dial (D) counterclockwise to lower height limit setting; clockwise to raise setting.

Changes to height setting take place immediately. Lowest height setting is limited to 25% of maximum height. Indicator (E) shows current hitch position.

3. When desired height is observed, press SELECT switch (F) to return to previous display.
