Adjusting Hitch Rate-of-Drop

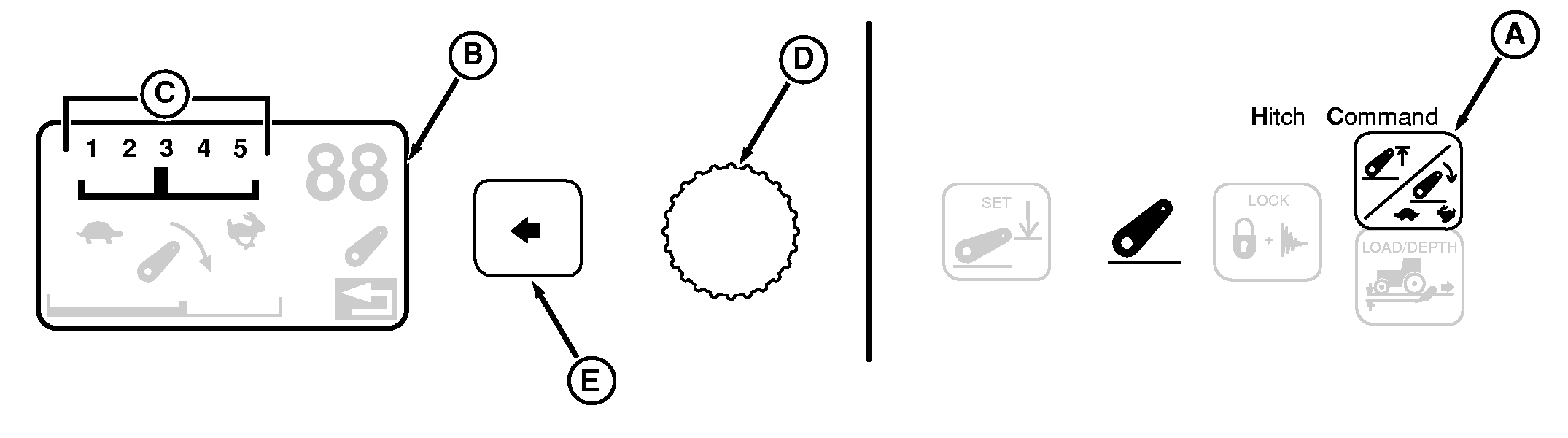

RXA0068116


A-Height/Rate Switch
B-CommandCenter Display


C-Speed Scale


D-Command Dial


E-Select Switch

causym CAUTION: Excessive drop speed may cause injury or machine damage. Fully lowering implement should take at least two seconds.

Hitch rate-of-drop is adjusted in the CommandCenter.

1. Press HEIGHT/RATE switch (A) twice and observe display (B); current rate-of-drop appears as a numbered scale (C) across the top.

2. Turn command dial (D) counterclockwise for slower rate setting (turtle); clockwise for faster setting (rabbit). Changes to rate-of-drop setting take place immediately.

3. When desired rate is reached, press SELECT switch (E) to return to previous display.

OUO1011,00053E1 -19-22MAR05-1/1
