Operating Turn Signals and High/Low Beam

Push lever (A) up for a right turn, or pull down for a left turn; signal indicator arrow will flash. Return lever to center position after completing turn.

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles.

Push lever (A) forward to activate high beam headlights; high beam indicator will come on. Pull lever into center position to operate low beam. Pull lever toward you and release to flash-to-pass high beams.

Dim headlights for oncoming vehicles.

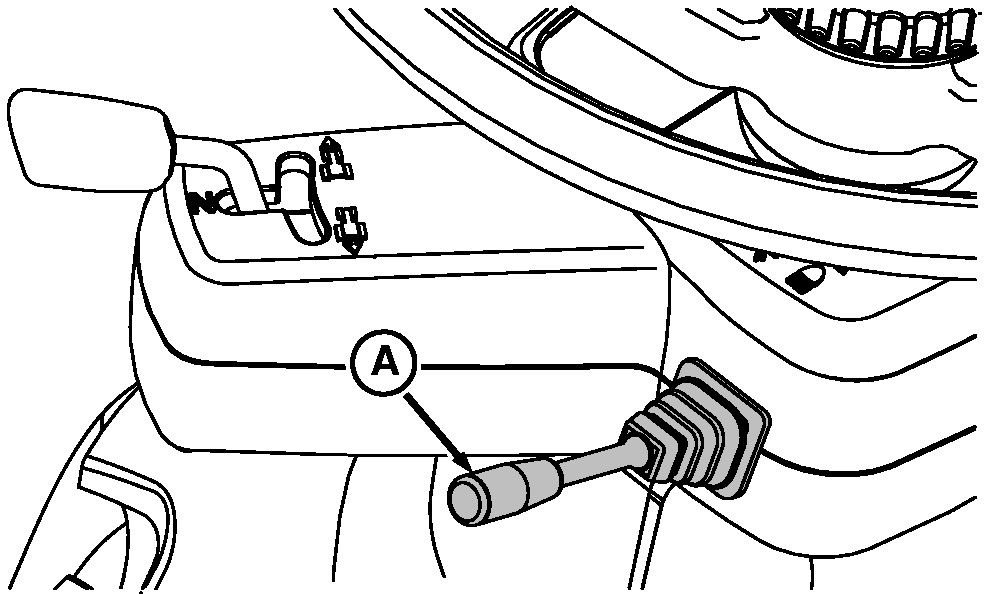

A-Turn Signal Lever

OURX986,00001B2 -19-26SEP03-1/1
