Using a Booster Battery or Charger

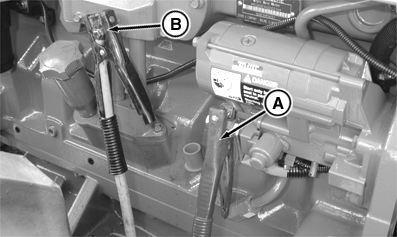

IMPORTANT: Be sure polarity is correct before making connections. Reversed polarity will damage electrical system or possibly cause an explosion of a battery. Booster Battery1. Attach one cable (red) to remote positive terminal (A) of starter and positive terminal of booster battery. 2. Attach second (black) battery cable to negative terminal of booster battery. Attach other end to a ground (B) on engine block. 3. Remove cable to ground first when disconnecting. Battery Charger1. Attach positive charger lead to positive remote terminal (A) with charger in OFF position. Attach negative charger lead to ground (B) at engine block, away from batteries. 2. Switch charger to ON and charge battery according to charger manufacturer's instructions. 3. Switch charger to OFF. Remove negative charger lead first, then positive lead. |
|
CAUTION:
Gas given off by batteries is explosive. Keep sparks and flames away from batteries. Make last connection and first disconnection at a point away from booster batteries.
OURX986,00001B3 -19-01AUG05-1/1 |
