MFWD or TLS Fender and Steering Stop Settings - Fixed Fenders, Up to and Including S. N. 030000

NOTE: This is an explanation of the tables in the next several pages.

IMPORTANT: Do not use 2032 mm (80 in.) or wider tread settings if equipped with fixed fenders and Heavy Duty MFWD axle. Fender bracket will interfere with axle hub.

The first row across the top of the page lists tread spacing in millimeters and inches.

Column one lists the tire size (A).

The first number (B) in column two identifies whether an eight or sixteen-position rim is used. The first letter (C) indicates which diagram to follow from either EIGHT POSITION WHEEL SETTINGS or SIXTEEN POSITION WHEEL SETTINGS. The next number (D) is the correct steering stop position. The next letter (E) is the fender width setting, which is taken from MFWD FENDER SETTINGS - FIXED FENDERS. The last letter (F) is the fender height setting, which is taken from MFWD FENDER SETTINGS - FIXED FENDERS.

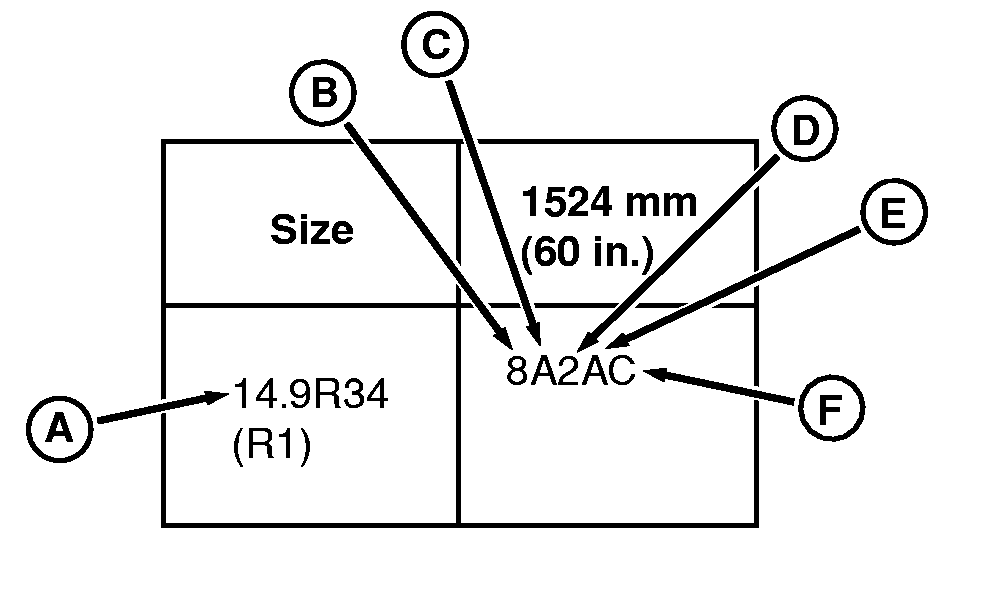

RXA0071633

Explanation of Tire Option Tables


A-Tire Size
B-Eight or Sixteen Position Rim
C-Tread Setting
D-Steering Stop
E-Fender Width Setting
F-Fender Height Setting

OURX986,00001CB -19-06JUN05-1/5

NOTE: Parts are available from your John Deere dealer to make 1676 mm (66 in.) row spacing setting.

MFWD Front Tire, Fender and Steering Stop Settings - Fixed Fenders
Size 1524 mm
(60 in.)		 1625 mm
(64 in.)		 1676 mm
(66 in.)		 1727.2 mm
(68 in.)		 1828.8 mm
(72 in.)
14.9R30 8A5AC 8B4CC 8B4CC 8C4CC 8D4CC
14.9R34 (R1) 8A5AD 8B4CD 8B4CD 8C4CD 8D4CD
16.9R28
R1-R1W		 8A5AC 8B4CC N/A 8C4CC 8D4CC
16.9R28
R2		 8A6AC 8B4CC N/A 8C4CC 8D4CC
16.9R30
R1-R1W		 8A5AD 8B4CD N/A 8C4CD 8D4CD
16.9R30
R2		 8A6AD 8B5CD N/A 8C4CD 8D4CD
290/90R38 16A5AD 16D4CD 16D4CD 16E4CD 16H4CD
290/95R34 8A5AC 8B4CC 8B4CC 8C4CC 8D4CC
12.4-42 16A6AD 16D4CD 16D4CD 16E4CD 16H4CD
320/85R34 (R1-R1W) 8A5AC 8B4CC 8B4CC 8C4CC 8D4CC
320/85R38 (R1W) 16A5AD 16D4CD 16D4CD 16E4CD 16H4CD
380/80R38 N/A N/A N/A N/A N/A
380/85R30 8A5AC 8B4CC 8B4CC 8C4CC 8D4CC
380/85R34 8A5AD 8B4CD 8B4CD 8C4CD 8D4CD
420/85R28 8A5AC 8B4CC N/A 8C4CC 8D4CC
420/85R34 N/A N/A N/A N/A N/A
420/90R30 8A6AD 8B4CD N/A 8C4CD 8D4CD
480/70R28 8A5AC 8B4CC N/A 8C4CC 8D4CC
480/70R30 N/A 8B4AD N/A 8C4CD 8D4CD
480/70R34 N/A N/A N/A N/A N/A



MFWD Front Tire, Fender and Steering Stop Settings - Fixed Fenders
Size 1576 mm (62 in.) 1676 mm (66 in.) 1780 mm (70 in.) 1880 mm (74 in.)
540/65R34 N/A N/A N/A N/A
600/65R28 N/A 8J6CD 8K4CD 8M4CD
600/70R30 N/A N/A N/A N/A



OURX986,00001CB -19-06JUN05-2/5

MFWD Front Tire, Fender and Steering Stop Settings - Fixed Fenders
Size 1930 mm
(76 in.)		 2032 mm
(80 in.)		 2133.6 mm
(84 in.)		 2235.2 mm
(88 in.)
14.9R30 8E4EC 8F4EC 8G4GC 8H4GC
14.9R34 (R1) 8E4ED 8F4ED 8G4GD 8H4GD
16.9R28
R1-R1W		 8E4EC 8F4EC 8G4GC 8H4GC
16.9R28
R2		 8E4EC 8F4EC 8G4GC 8H4GC
16.9R30
R1-R1W		 8E4ED 8F4ED 8G4GD 8H4GD
16.9R30
R2		 8E4ED 8F4ED 8G4GD 8H4GD
290/90R38 16I4ED 16L4ED 16M4GD 16P4GD
290/95R34 8E4EC 8F4EC 8G4GC 8H4GC
12.4-42 16I4ED 16L4ED 16M4GD 16P4GD
320/85R34 (R1-R1W) 8E4EC 8F4EC 8G4GC 8H4GC
320/85R38 (R1W) 16I4ED 16L4ED 16M4GD 16P4GD
380/80R38 N/A N/A N/A N/A
380/85R30 8E4EC 8F4EC 8G4GC 8H4GC
380/85R34 8E4ED 8F4ED 8G4GD 8H4GD
420/85R28 8E4EC 8F4EC 8G4GC 8H4GC
420/85R34 N/A N/A N/A N/A
420/90R30 8E4ED 8F4ED 8G4GD 8H4GD
480/70R28 8E4EC 8F4EC 8G4GC 8H4GC
480/70R30 8E4ED 8F4ED 8G4GD 8H4GD
480/70R34 N/A N/A N/A N/A



MFWD Front Tire, Fender and Steering Stop Settings - Fixed Fenders
Size 1979 mm (78 in.) 2083 mm (82 in.) 2184 mm (86 in.)
540/65R34 N/A N/A N/A
600/65R28 8N4ED 8O4ED 8P4GD
600/70R30 N/A N/A N/A



OURX986,00001CB -19-06JUN05-3/5

Triple Link Suspension (TLS) Front Tire, Fender and Steering Stop Settings - Fixed Fenders
Size 1524 mm
(60 in.)		 1625 mm
(64 in.)		 1676 mm
(66 in.)		 1727.2 mm
(68 in.)		 1828.8 mm
(72 in.)
14.9R30 8A5AC 8B4CC 8B4CC 8C4CC 8D4CC
14.9R34 (R1) 8A5AD 8B4CD 8B4CD 8C4CD 8D4CD
16.9R28
R1-R1W		 8A5AC 8B4CC N/A 8C4CC 8D4CC
16.9R28
R2		 8A6AC 8B4CC N/A 8C4CC 8D4CC
16.9R30
R1-R1W		 8A5AD 8B4CD N/A 8C4CD 8D4CD
16.9R30
R2		 8A6AD 8B4CD N/A 8C4CD 8D4CD
290/90R38 16A5AD 16D4CD 16D4CD 16E4CD 16H4CD
290/95R34 8A5AC 8B4CC 8B4CC 8C4CC 8D4CC
12.4-42 16A6AD 16D4CD 16D4CD 16E4CD 16H4CD
320/85R34
(R1-R1W)		 8A5AC 8B4CC 8B4CC 8C4CC 8D4CC
320/85R38 (R1W) 16A5AD 16D4CD 16DCD 16E4CD 16H4CD
380/80R38 N/A N/A N/A N/A N/A
380/85R30 8A5AC 8B4CC 8B4CC 8C4CC 8D4CC
380/85R34 8A5AD 8B4CD 8B4CD 8C4CD 8D4CD
420/85R28 8A5AC 8B4CC N/A 8C4CC 8D4CC
420/85R34 N/A N/A N/A N/A N/A
420/90R30 8A6AD 8B4CD N/A 8C4CD 8D4CD
480/70R28 8A5AC 8B4CC N/A 8C4CC 8D4CC
480/70R30 N/A 8B4AD N/A 8C4CD 8D4CD
480/70R34 N/A N/A N/A N/A N/A



Triple Link Suspension (TLS) Front Tire, Fender and Steering Stop Settings, Fixed Fenders
Size 1576 mm (62 in.) 1676 mm (66 in.) 1780 mm (70 in.) 1880 mm (74 in.)
540/65R34 N/A N/A N/A N/A
600/65R28 N/A 8J6CD 8K4CD 8M4CD
600/70R30 N/A N/A N/A N/A



OURX986,00001CB -19-06JUN05-4/5

Triple Link Suspension (TLS) Front Tire, Fender and Steering Stop Settings - Fixed Fenders
Size 1930 mm
(76 in.)		 2032 mm
(80 in.)		 2133.6 mm
(84 in.)		 2235.2 mm
(88 in.)
14.9R30 8E4EC 8F4EC 8G4GC 8H4GC
14.9R34 (R1) 8E4ED 8F4EC 8G4GD 8H4GD
16.9R28
R1-R1W		 8E4EC 8F4EC 8G4GC 8H4GC
16.9R28
R2		 8E4EC 8F4EC 8G4GC 8H4GC
16.9R30
R1-R1W		 8E4ED 8F4ED 8G4GD 8H4GD
16.9R30
R2		 8E4ED 8F4ED 8G4GD 8H4GD
290/90R38 16I4ED 16L4ED 16M4GD 16P4GD
290/95R34 8E4EC 8F4EC 8G4GC 8H4GC
12.4-42 16I4ED 16L4ED 16M4GD 16P4GD
320/85R34
(R1-R1W)		 8E4EC 8F4EC 8G4GC 8H4GC
320/85R38 (R1W) 16I4ED 16L4ED 16M4GD 16P4GD
380/80R38 N/A N/A N/A N/A
380/85R30 8E4EC 8F4EC 8G4GC 8H4GC
380/85R34 8E4ED 8F4ED 8G4GD 8H4GD
420/85R28 8E4EC 8F4EC 8G4GC 8H4GC
420/85R34 N/A N/A N/A N/A
420/90R30 8E4ED 8F4ED 8G4GD 8H4GD
480/70R28 8E4EC 8F4EC 8G4C 8H4GC
480/70R30 8E4ED 8F4ED 8G4GD 8H4GD
480/70R34 N/A N/A N/A N/A



Triple Link Suspension (TLS) Front Tire, Fender and Steering Stop Settings, Fixed Fenders
Size 1979 mm (78 in.) 2083 mm (82 in.) 2184 mm (86 in.)
540/65R34 N/A N/A N/A
600/65R28 8N4ED 8O4ED 8P4GD
600/70R30 N/A N/A N/A



OURX986,00001CB -19-06JUN05-5/5
