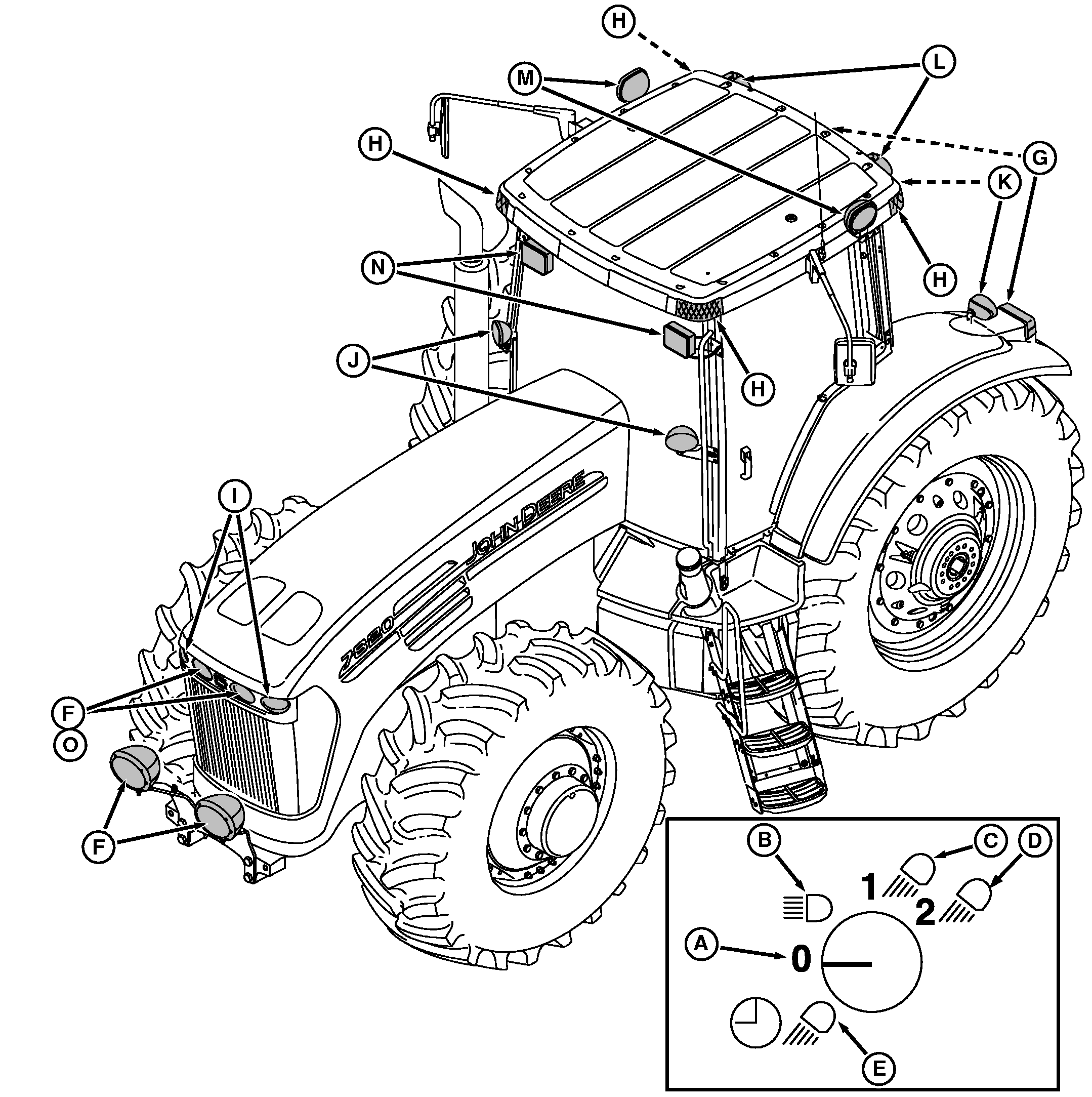

Operating Lights

RXA0080356


A-O (OFF)
B-Road Position
C-Field 1 Position
D-Field 2 Position
E-Delayed Shutdown Position (If Equipped)


F-Driving Lights, High/Low Beam
G-Red Tail Lights
H-Amber Hazard Lights
I-Floodlights, Front Outer (Standard or HID-Xenon)


J-Floodlights, Cab Beltline
K-Floodlights, Fender Rear (Standard or HID-Xenon)
L-Floodlights, Cab Roof Rear
M-Floodlights, Cab Roof Side (If Equipped)


N-Loader Lights, High/Low Beam (If Equipped)
O-HID-Xenon Floodlights (If Equipped)

OURX986,00001D5 -19-02JUN05-1/2

causym CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using floodlights which could blind or confuse other drivers.

Standard light switch has four positions (A-D) and operates regardless of key position. With optional Egress lighting, switch has five positions; the same four as standard switch, plus delayed shut-down position (E).

O (OFF) Position (A):

Turns all lights off.

NOTE: Refer to PROGRAMMING HEADLIGHTS AND FLOODLIGHTS for lighting set-up information.

Road Position (B):

Turns on high/low beam driving lights (F) (or loader lights (N) if equipped and activated), red tail lights (G) and flashing amber hazard lights (roof (H) and extremity-not shown).

NOTE: When equipped with HID-Xenon floodlights, high/low beam driving lights are relocated to

the weight bracket or loader grille guard (if equipped)

Field Positions 1 (C) and 2 (D):

Turns on clear-lens lighting (F, I-O) programmed for each Field position.

Delayed Shut-Down Position (E):

See USING DELAYED EGRESS LIGHTING (IF EQUIPPED) for operating information.

Automatic Battery Protection Feature

To prevent battery discharge if headlights or working lights are left on accidentally after shutting off engine and removing ignition key, the electrical system will automatically start following sequence:

  • After 30 minutes have elapsed, lights will turn on and off 5 times
  • After 5th time, lights will turn back on and stay lit for about 60 seconds
  • After 60 seconds, lights will go off and stay off to prevent complete battery discharge

OURX986,00001D5 -19-02JUN05-2/2
