MFWD Fender Width Settings-Fixed Fenders, Up to and Including S. N. 030000

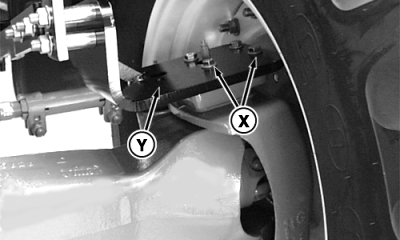

Position fender mounting bracket for tread settings according to rim position:

  • Rim dished IN -Use outer mounting holes (X)
  • Rim dished OUT -Use inner mounting holes (Y)

Use selected wheel tread spacing in chart below to determine appropriate fender width configuration (A-H).

RXA0073897

Bracket Settings


X-Outer Mounting Holes
Y-Inner Mounting Holes

Fender
Width
Spacing*		 Bracket Setting Wheel Tread Spacing
    Valve Stem Out
mm (in.)		 Valve Stem In
mm (in.)

A X 1524 (60) -
B X 1626 (64) -
C X - 1727 (68)
D X - 1829 (72)
E Y 1930 (76) -
F Y 2032 (80) -
G Y - 2134 (84)
H Y - 2235 (88)



* See available fender assembly configurations on next page

OURX986,0000268 -19-22OCT04-1/2

RW56591

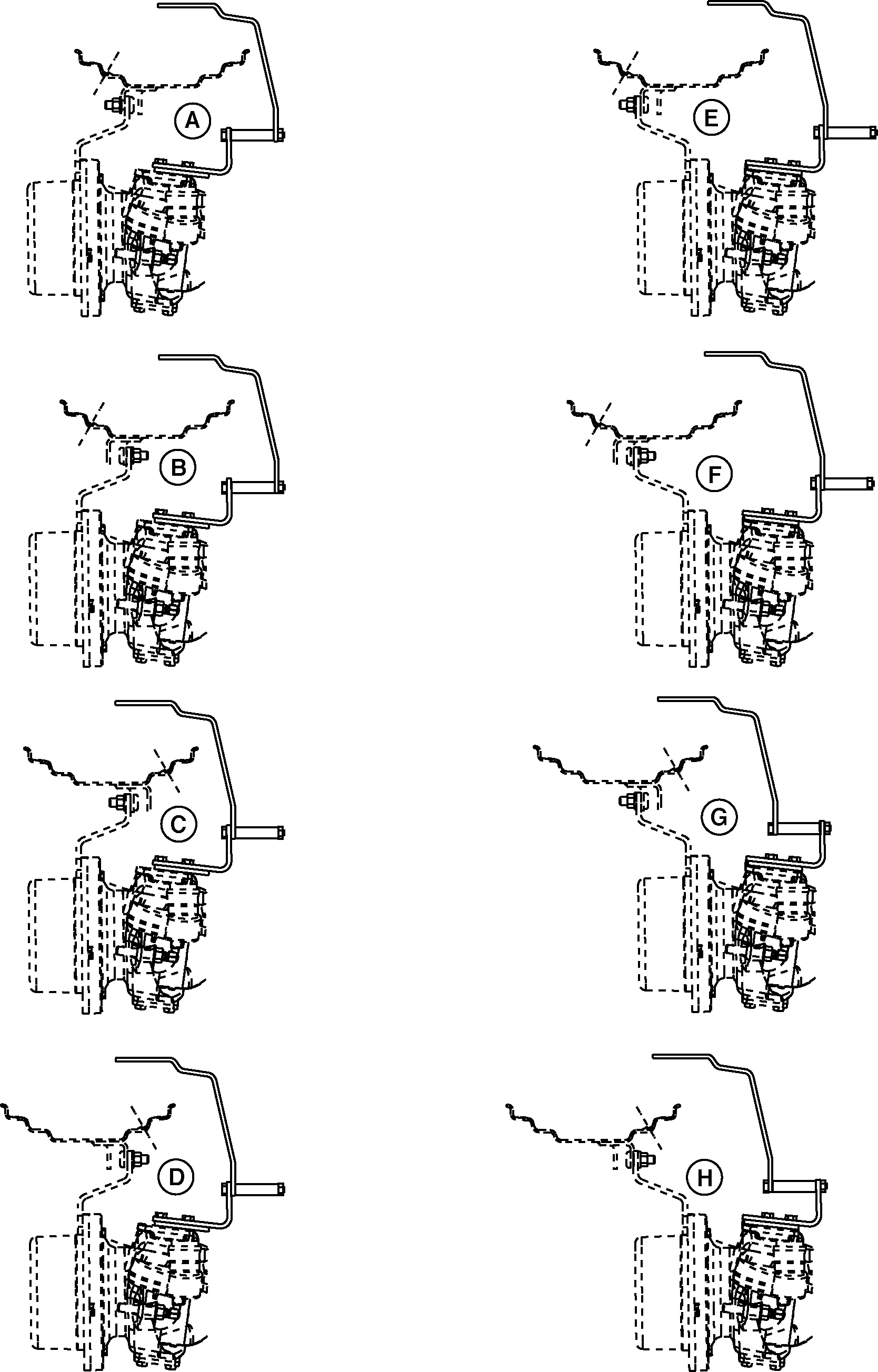

Available Fender Assembly Configurations

OURX986,0000268 -19-22OCT04-2/2
