Adjusting Toe-In-MFWD And TLS Axle

1. Check to make sure axle is centered.

2. Loosen clamp nut (A) on right and left tie rod.

3. Rotate steering cylinder rod (B) as necessary to obtain toe-in or toe-out less than specifications. Each 1/8 turn equals approximately 4 mm (3/16 in.) change.

Specification

Maximum Toe-in or Toe-out -Distance

3 mm

(1/8 in.)

4. Tighten each nut to specifications.

Specification

Tie-Rod Clamp Nut -Torque

75 N·m

(55 lb-ft)

NOTE: Clamp cap screw threads should point to front of tractor.

IMPORTANT: Improper steering stop or fender settings can damage tie rod boot (C).

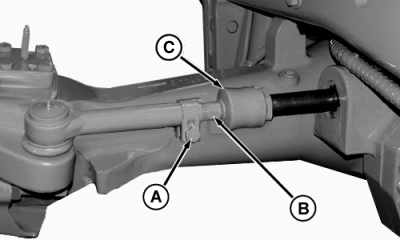

A-Clamp Nut
B-Steering Cylinder Rod
C-Tie Rod Boot
