MFWD Fender Height Settings - Fixed Fenders, Up to and Including S. N. 030000
|
|

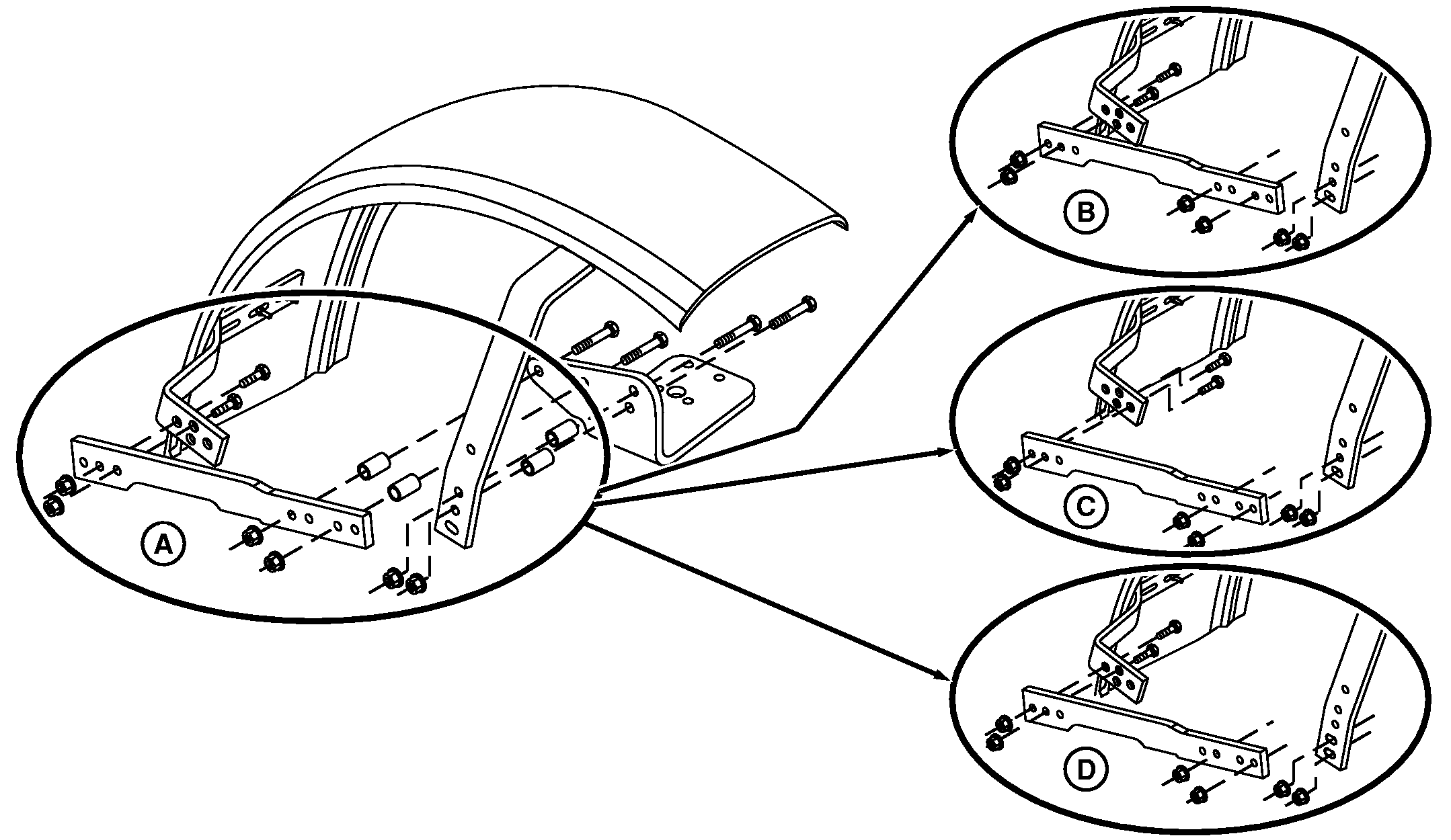

Adjust fender support bracket referring to tire size/fender setting chart below.
|
Tighten fender mounting hardware to specifications. |
| Item | Measurement | Specification |
|---|---|---|
| Fender Mounting Hardware | ||
|
Mounting Bracket-to-Steering Arm Screws |
Torque | 90 N·m |
| 67 lb-ft | ||
|
Support Bracket-to-Mounting Bracket Hardware |
Torque | 224 N·m |
| 166 lb-ft |
|
Tractors with loaders may have different fender settings. Refer to loader Operator's Manual. NOTE: See MFWD FENDER WIDTH SETTINGS - FIXED FENDERS for |
appropriate spacer locations. Spacers shown, for 1524 mm (60 in.) row configuration. |
