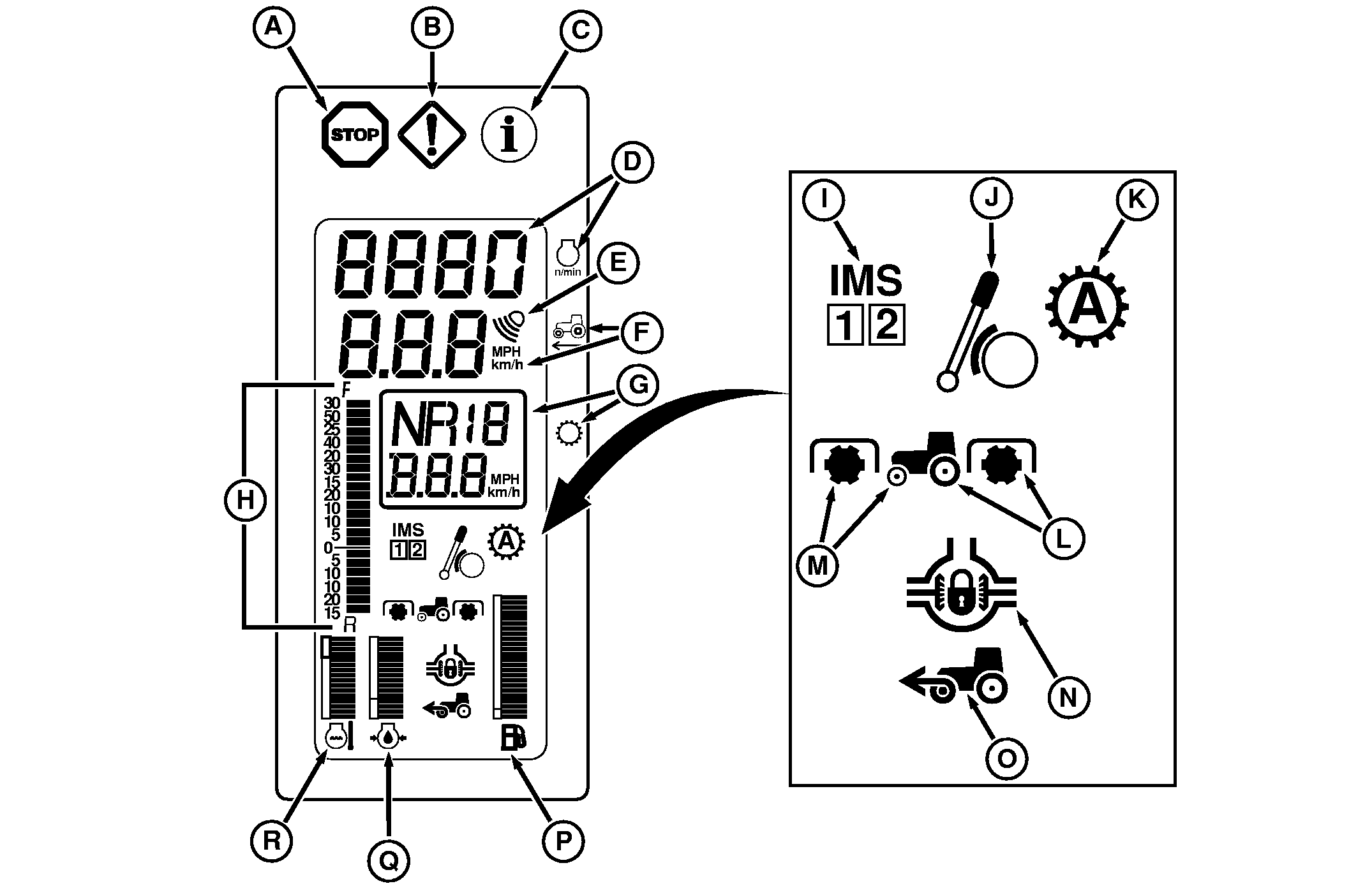

A-STOP Indicator
B-Service Alert Indicator
C-Information Indicator
D-Tachometer
E-Radar Indicator (If Equipped)
|
F-Ground Speed1
G-Transmission Information
H-Set Speeds (IVT) or Analog Speedometer (PQ+ and AQ+)
I-IMS ON/OFF and Sequence Indicators
|
J-Not Used
K-Auto/ECO Indicator (AQ+) or Engine Load Indicator (IVT)
L-PTO Indicator-Rear
M-PTO Indicator-Front (If Equipped)
|
N-Differential Lock Indicator
O-MFWD Engaged Indicator (If Equipped)
P-Fuel Level Gauge
Q-Engine Oil Pressure Gauge
R-Coolant Temperature Gauge
|
