Heated Leather Seat-If Equipped

NOTE: Heater will automatically turn off after 1 hour of use and can be turned on again manually, as needed.

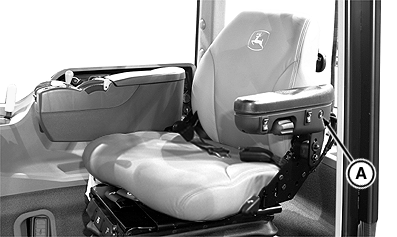

The heated leather seat provides three levels of heat intensity for increased comfort during cold days. Heat intensity is controlled by a LED momentary switch located in the left armrest.

Heated Leather Seat Switch- 3 Heat Levels

• Press in on once switch (A) to turn heated seat on.
• Depress switch one time for high heat level.
• Depress switch two times for medium heat level.
• Depress switch three times for low heat level.
• Depress switch four times to turn heater off.

LED Diagnostics Blink Pattern

· LED On longer than Off-Heating wire failure.

· LED Off longer than On-Temperature sensor failure.

Clean seat with mild soap and warm water. Use automotive leather conditioner for conditioning. Conditioning should be done every 6 months if tractor is stored outside. If stored inside conditioning interval can be extended to 12 months.

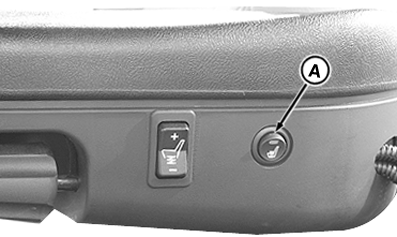

A-Heated Seat Switch

OURX986,00002C8 -19-21OCT04-1/1
