Accessing GREENSTAR Implement Connection-Optional

The GREENSTAR ™ system has a 2.5 volt dual-CAN Bus.

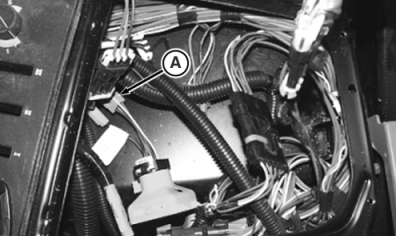

Implement harness connects to the Parallel Tracking harness at connector (A) found under the control console rear panel.

GREENSTAR is a trademark of Deere & Company

AG,RF30435,2633 -19-15MAR00-1/1
