OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: AG_RF30435_2658_19

Checking Neutral Start System-PowrQuad Transmission With Right-Hand Reverser

SERVICE INTERVAL - 250 HOURS

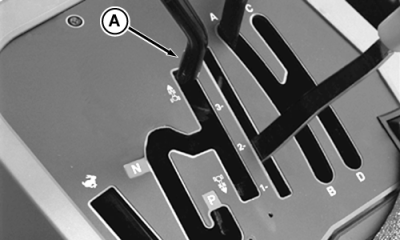

Fully depress clutch and brake pedals. Move reverser lever (A) from PARK to a forward gear. Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately. Repeat this step with transmission in a reverse gear.

AG,RF30435,2658 -19-03MAY00-1/1
