Checking Neutral Start System-PowrQuad Transmission With Left-Hand Reverser
| SERVICE INTERVAL - 250 HOURS |

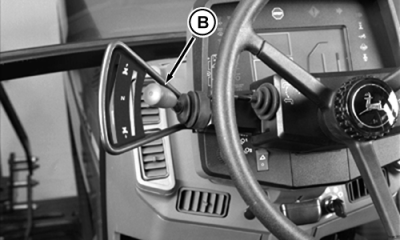

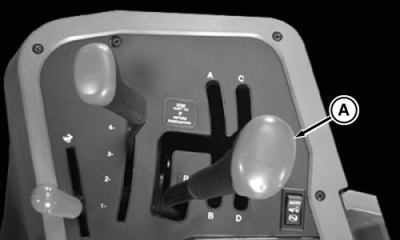

Start engine with range-shift lever (A) in NEUTRAL and reverser lever (B) in NEUTRAL. Wait 6-7 seconds. Move reverser lever from neutral to forward or reverse. If reverser lever remains in direction selected, without being held, neutral start system is working correctly.
If reverser lever returns INSTANTLY from forward or reverse to neutral, without being moved manually, neutral start system should be repaired by your John Deere Dealer immediately.
|
