Cleaning or Replacing Cab Air Filters

CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

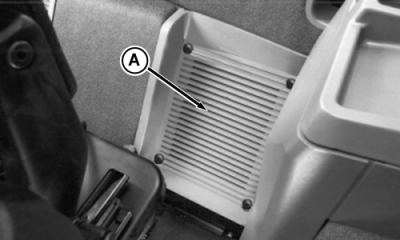

Remove air recirculation filter housing covers (A) located behind the seat. Remove filters and blow clean with compressed air.

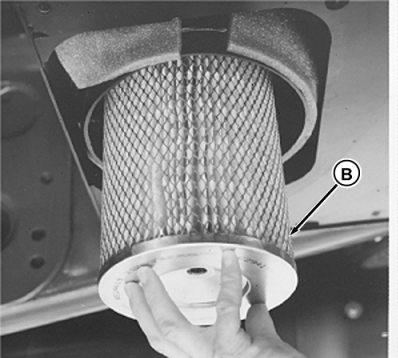

Remove wing nut and cover located under cab. Remove and clean fresh air filter (B) with compressed air.

Replace damaged filter immediately. Make sure gasket is in good condition.

AG,RF30435,2660 -19-03MAY00-1/1
