Replacing Primary and Secondary Engine Air Filters

SERVICE INTERVAL - ANNUALLY *

* Interval can vary according to operating conditions

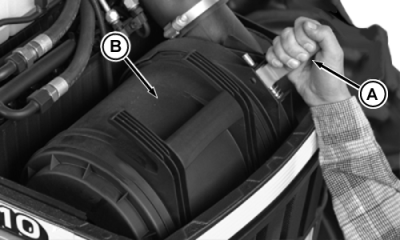

Unfasten latch (A) and remove canister (B).

Remove primary filter from canister and clean dirt from inside canister.

IMPORTANT: Do not attempt to clean secondary filter (C).

Replace secondary filter every second or third primary filter change.

Install new secondary filter immediately to prevent dust from entering air intake system.

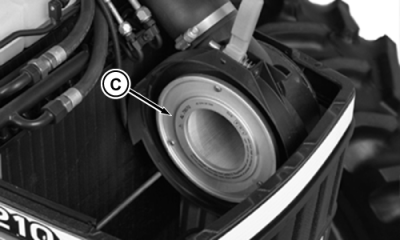

Remove screws and pull out secondary filter (C) if replacement is required.

Install new filters.

Install canister and fasten latch (A) securely.

RW55973A
RW55974A

AG,RF30435,2661 -19-03MAY00-1/2

IMPORTANT: Do not operate engine without air cleaner or rubber dust unloading valve.

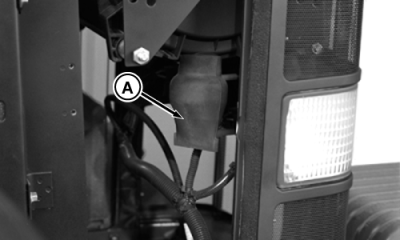

Remove and clean the rubber dust unloading valve (A).

RW55975A

AG,RF30435,2661 -19-03MAY00-2/2
