Changing Engine Oil and Filter

SERVICE INTERVAL - 250 HOURS *

* 375 hours if PLUS-50 Oil and a John Deere Filter are used



IMPORTANT: Change engine oil every 125 hours if diesel fuel has a sulfur content greater than 0.5 percent.

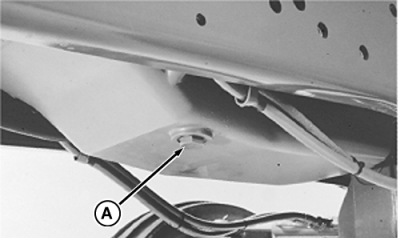

Operate engine to warm oil. Stop engine. Remove crankcase drain plug (A). Replace plug after oil drains out.

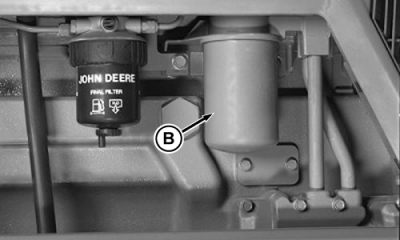

Remove filter (B). Remove old packing and clean filter mounting surface.

Apply a thin film of oil to new packing and install new filter. Hand-tighten filter. Do not overtighten.

Refill crankcase with seasonal viscosity grade oil.

Crankcase Capacity with Filter

7210,7410,7510 ... 19 L (20 qt)




Start engine and check for leaks.

Stop engine. Recheck oil level.

RW55026A
RW55965A

AG,RF30435,2665 -19-03MAY00-1/1
