Draining, Flushing, and Filling Cooling System

SERVICE INTERVAL

INITIAL INTERVAL - 3 YEARS
SCHEDULED - 2 YEARS *

* 5 Years or 5000 Hours if John Deere COOL-GARD is used



causym CAUTION: Avoid personal injury. DO NOT remove expansion tank cap with hot engine. Stop engine and wait until engine has cooled.

1. Lift hood and slowly turn the expansion tank cap (A) to relieve pressure, then carefully remove cap.

2. Open the radiator and engine drain cocks (B) and (C) and drain old coolant.

3. Remove thermostat cover (D) and thermostats. Install cover without thermostats. Tighten cap screws.

IMPORTANT: Thermostats must be removed and cab heater must be in the ON position during the entire flushing procedure.

4. Close drain cocks, fill system with a commercial cooling system cleaning solution . Bring engine to operating temperature. Stop engine and drain system.

IMPORTANT: Never pour cold water or coolant into hot engine.

5. Close drain cocks, fill system with clean water . Bring engine to operating temperature. Stop engine and drain system.


A-Cap
B-Radiator Drain Cock
C-Engine Drain Cock
D-Thermostat Cover
E-Air Bleed Plug

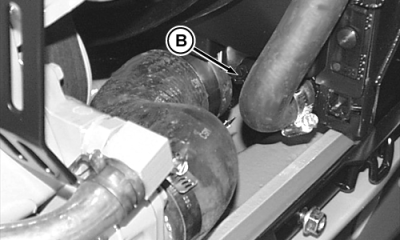

RW26524

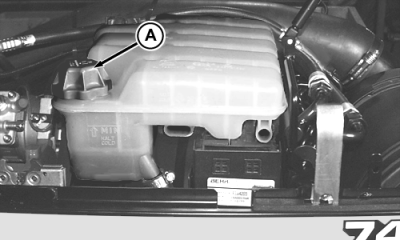

RW26525

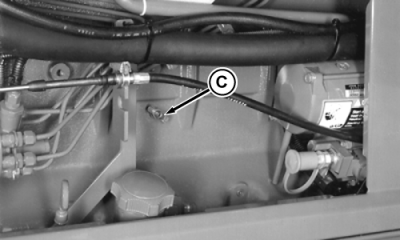

RW56288A

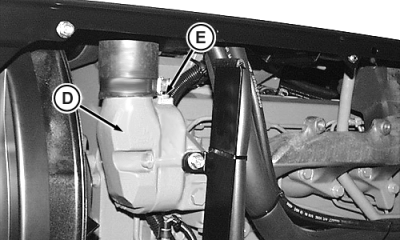

RW26950

AG,RF30435,2667 -19-12MAY00-1/2

6. Remove thermostat cover (A) and clean sealing area. Apply sealant to new gasket and install thermostats and gasket. Tighten cap screws to 48 N·m (35 lb-ft).

IMPORTANT: Air must be expelled from cooling system when filling system.

7. Loosen plug (B) in thermostat housing to allow air to escape when filling system.

8. Close drain cocks. Fill system with the specified coolant . Operate engine to circulate and mix coolant.

9. Tighten plug (B) when all air has been expelled. Coolant level should be up to mark on expansion tank.

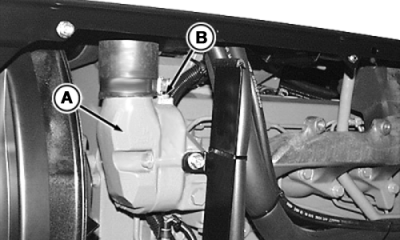

RW27065
