Using ULTRAGARD™ Filtering System

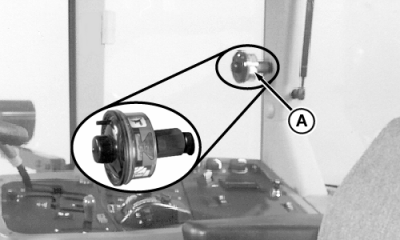

Do not apply pesticides if cab pressure indicator is entirely in red zone. Use only John Deere ULTRAGARD XL Pesticide Cab Air Filters for both fresh air and recirculated air. Use recommended personal protective equipment when removing or cleaning air filters, as indicated by pesticide labels. Cab pressure monitor (A) is located on right rear corner post. With the door closed and the fan ON, the yellow cab pressure indicator should register in the safe (green) zone. If the cab pressure indicator falls to the unsafe (red) zone, a leak may be present. See Operator Enclosure Troubleshooting in Troubleshooting Section. |
|
CAUTION:
Prolonged exposure to pesticides can cause injury or death.
|
ULTRAGARD is a trademark of Deere & Company | AG,RF30435,2683 -19-15JUN00-1/1 |
