Cleaning and Inspecting Primary Engine Air Filter

IMPORTANT: Compressed air pressure should not exceed 75 psi (500 kPa) (5 bar) when used for cleaning.

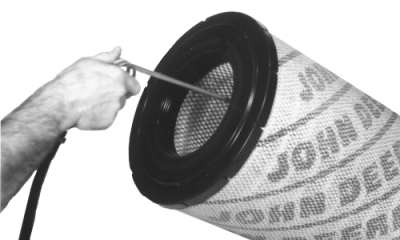

Clean filter using compressed air. Hold nozzle next to inner surface and move up and down pleats.

Hold a bright light inside filter and check carefully for damage. Discard filter if screen is damaged or filter shows the slightest rupture or hole.

Make sure gasket is in good condition.

AG,RF30435,2686 -19-27JUN00-1/1
