Single-Lever Controls

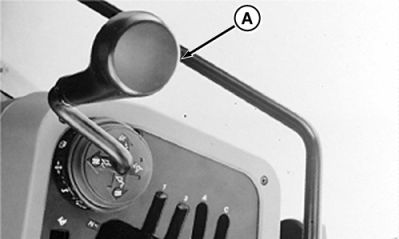

Single-lever control (A) can be used for fourth or fifth SCV control or loader operations.

AG,RX15494,1631 -19-10AUG99-1/2

Single-lever control (B) combines loader boom and bucket motions with grapple control. (See your implement operator's manual for correct use.)

AG,RX15494,1631 -19-10AUG99-2/2
