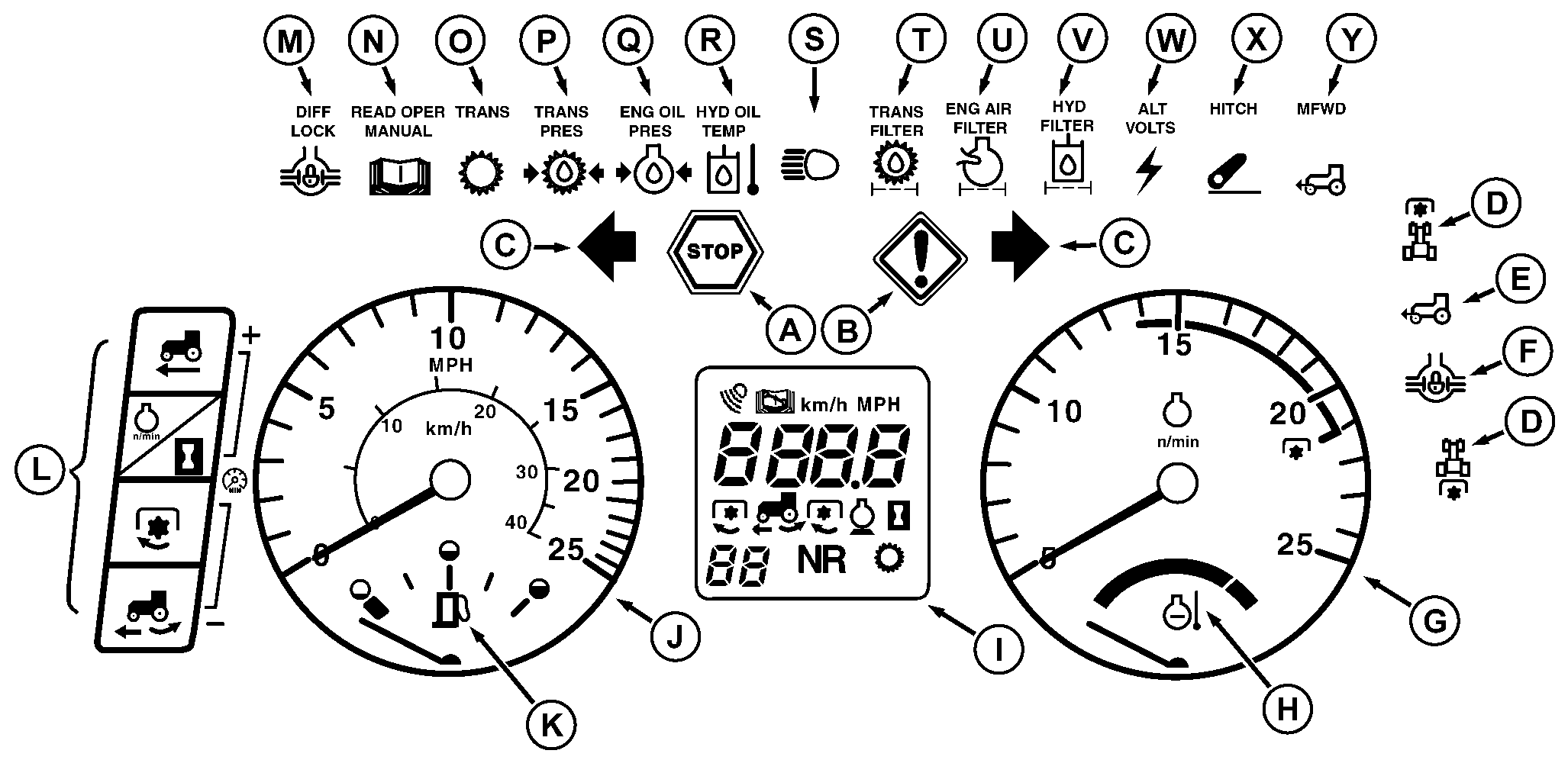

| KEY |
ITEM or INDICATOR |
FUNCTION |
| A |
STOP |
Serious malfunction-STOP ENGINE IMMEDIATELY and determine the cause |
| B |
SERVICE ALERT |
Flashes when a problem develops-Observe gauges and indicator lamps |
| C |
Turn Signal |
Flashes left or right turn lights-Both flash when activating HAZARD switch |
| D |
PTO Function |
Indicates the activated Front or Rear PTO-Indicator flashes if a problem exists |
| E |
MFWD Function (Cab) |
Indicates MFWD or HMS is engaged-Indicator flashes if a problem exists |
| F |
Differential Lock Function (Cab) |
Indicates Differential Lock or HMS is engaged-Indicator flashes if a problem exists |
| G |
Tachometer |
Indicates engine speed |
| H |
Engine Temperature |
Indicates the temperature of the engine |
| I |
Digital Display |
Displays tractor true ground speed (mph), hourmeter, front and rear PTO speed, engine speed, current system voltage, and wheel slip |
| J |
Speedometer |
Indicates tractor ground speed (mph) |
| K |
Fuel |
Indicates remaining amount of fuel |
| L |
Function Selectors |
Changes Digital Display functions-(See Changing Display Function) |
| M |
Differential Lock Function (OOS) |
Indicates Differential Lock is activated-Indicator flashes if a problem exists |
| N |
Read Operator Manual |
F1 fuse is blown |
| O |
Transmission System |
None |
| P |
Transmission Oil Pressure a |
Low transmission oil pressure-Stop engine and determine cause |
| Q |
Engine Oil Pressure a |
Low engine oil pressure-Stop engine and determine cause |
| R |
Hydraulic Oil Temperature a |
Hot hydraulic oil-Stop engine and determine cause |
| S |
High Beam Head Lights |
Indicates high-beam head lights are activated |
| T |
Transmission Filter Restriction b |
Plugged transmission filter-Service as soon as possible-(See Service sections) |
| U |
Air Filter Restriction b |
Restricted air filter-Service as soon as possible-(See Service sections) |
| V |
Hydraulic Filter Restriction b |
Plugged hydraulic filter-Service as soon as possible-(See Service sections) |
| W |
Voltage b |
Electrical system voltage is too low or too high |
| X |
Hitch System |
Indicator flashes if a hitch system problem exists |
| Y |
MFWD Function (Open Station) |
Indicates MFWD is engaged-Indicator flashes if a problem exists |
| |
|
|
| aSTOP ENGINE INDICATOR flashes |
| bSERVICE ALERT INDICATOR flashes |
