Calibrating Radar-Digital Instrument Panel

NOTE: Changing tire size or loading of tractor can cause angle of radar to change making it necessary to calibrate the radar system.

Mark a straight-line course of 121.9 m (400 ft).

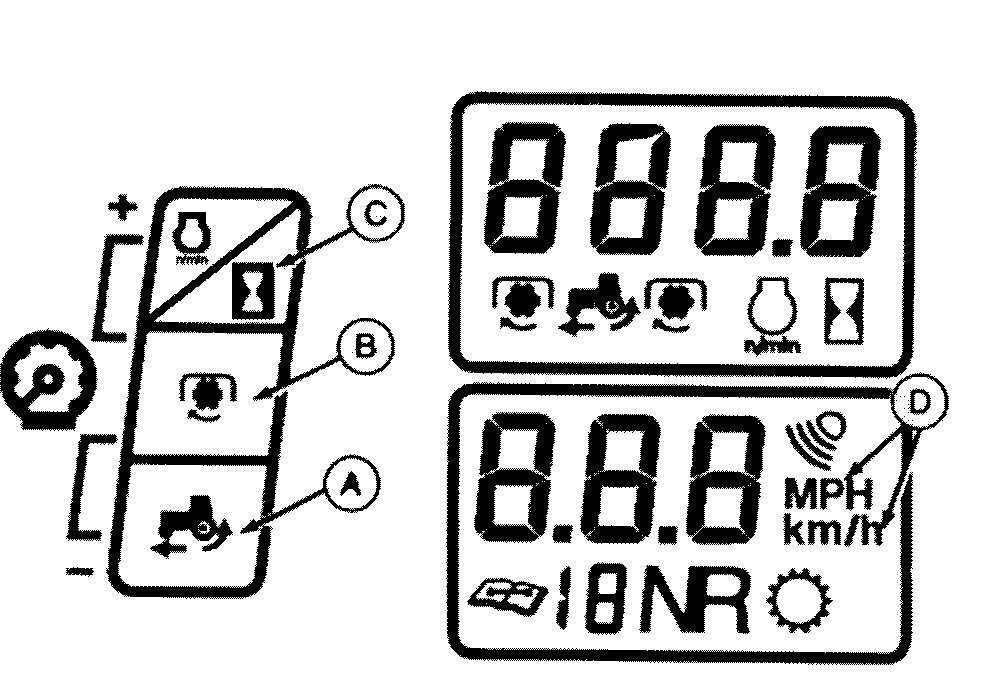

Press and hold simultaneously switches (A), (B), and (C). Software identification is first displayed, then digital display (D) will flash back and forth between km/h and MPH with three dashes.

Drive tractor at approximately 3.2 km/h (2 mph) and press switch (A) when crossing the first mark of the course. A series of numbers will continue to flash while driving the course.

Press switch (A) when crossing the second mark of the course. Calibration is complete when a random two or three digit number displays, or "CAL" displays for a few seconds followed by alternating "122 m" and "400 ft".
