CAUTION:
Avoid injury caused by accidental collision with another vehicle. Comply with traffic regulations when driving tractor on a road. Avoid using flood lights which could blind or confuse other drivers.
Light switch (A) has three positions and operates regardless of the key position.
OFF POSITION
Shuts off all lights
HAZARD POSITION
-
(B)
Hazard Lights
ROAD POSITION 1
-
(C)
Hazard Lights
Head Lights
Tail Lights
FIELD POSITION 2
-
(D)
Head Lights
Front and Rear Flood Lights
Front Wrap-Around Lights

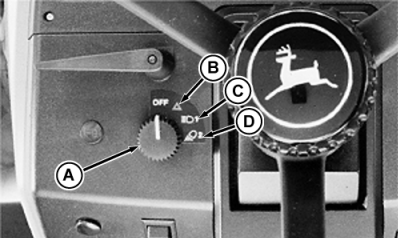

A-Light Switch
B-Hazard Position
C-Road Position
D-Field Position

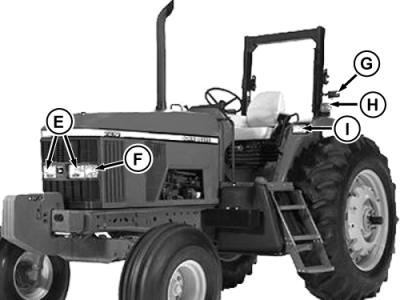

E-Head Lights
F-Front Wrap-Around Light
G-Rear Flood Light (Optional) H-Hazard Lights
I-Front Fender Flood Lights
CAUTION:
Avoid injury caused by accidental collision with another vehicle. Comply with traffic regulations when driving tractor on a road. Avoid using flood lights which could blind or confuse other drivers.
