Operating Lights-Cab
 CAUTION:
Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using flood lights which could blind or confuse other drivers.

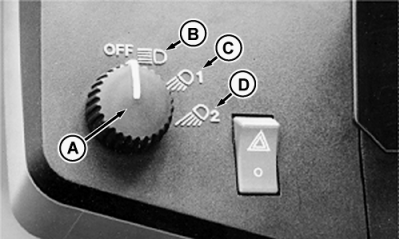

The light switch (A) has three positions and operates regardless of the key position.
OFF POSITION
-
Shuts off all lights
ROAD POSITION-
(B)
-
High/Low Beam Head Lights
-
High/Low Beam Loader Lights
-
Amber Warning Lights
-
Tail Lights
FIELD POSITION 1-
(C)
-
High/Low Beam Head Lights
-
High/Low Beam Loader Lights
-
Front Belt-Line Floods
-
Rear Fender Floods
-
Rear Roof Floods (High Beam Position)
-
Front Wrap-Around Lights
FIELD POSITION 2-
(D)
-
High/Low Beam Head Lights
1
-
Front Roof Flood Lights
-
Rear Fender Floods
-
Front Wrap-Around Lights
-
Front Belt-Line Flood Lights (High Beam Position)
-
Rear Roof Floods (High Beam Position)
|
A-Light Switch
B-Road Position
C-Field Position 1
D-Field Position 2
E-Amber Warning Lights

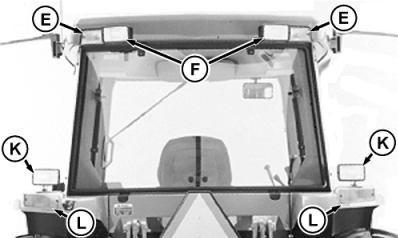

F-Roof Flood Lights
G-Loader Lights (Optional)

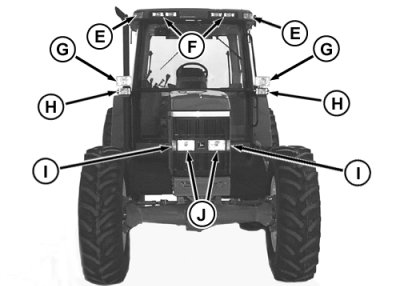

H-Front Belt-Line Flood Lights
I-Front Wrap-Around Lights
J-Head Lights
K-Rear Flood Lights (Optional)
L-Red Tail Lights
|
