Operating Turn Signals, Horn, and Head Lights

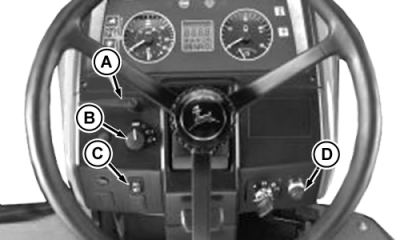

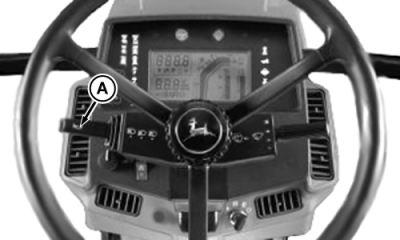

Push lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

Push inward on end of lever (A) or push button (D) to activate horn.

Push lever (A) forward to activate high beam head lights.

Pull lever into center position to operate low beam.

Pull lever toward you and release to flash high beam.

Turn knob (B) to select head light operation. Push switch (C) to activate high beam head lights.

Dim headlights for oncoming vehicles. Adjust headlights correctly.

AG,RX15494,1652 -19-26AUG99-1/1
