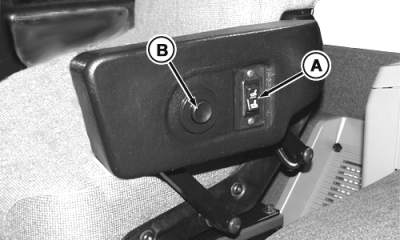

Adjusting Air Suspension SeatWeight and Height Adjustment Turn key switch to ON position. Press lower portion of switch (A) to lower seat. Press upper portion of switch to raise the seat to adjust for individual weight and height. Armrest Adjustment Press button (B) to adjust armrest height. Fore-Aft Seat Position Pull up on handle (C) to allow the seat to slide forward or backward. Lateral Attenuator Lock Pulling up on handle (D) allows the seat sideways movement. Push handle down to lock lateral movement. Seat Swivel Lift up on handle (E) to swivel in either direction and lock into the closest detent. Pulling up firmly on handle to release position allows seat to swivel freely. Fore-Aft Attenuator Lock Lever (F) controls forward and backward movement. Push down on lever to lock seat in forward or rearward position. Dampening Lever (G) can be set to three positions for desired comfort. Move lever rearward (+) to firm the ride, and forward (-) to soften the ride. Backrest Angle and Lumbar Support Backrest angle is changed by raising or lowering the control lever located at the rear of the right armrest. Lumbar support is changed by a control lever on the right side in the seat back. |
|
AG,RX15494,1654 -19-25AUG00-1/1 |
