Step Removal-Cab Tractors

Bottom step can be removed, if required, for crop clearance.

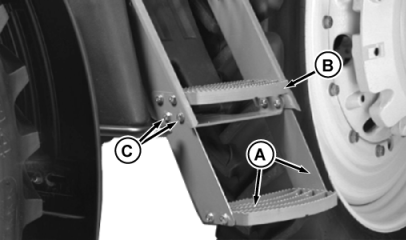

Remove bottom step with side brackets (A).

Remove center step (B) and install in lowest position (C).

Remove top step and install in lower position.

NOTE: Optional right side steps can be removed in same manner.

AG,RX15494,1659 -19-26AUG99-1/1
