OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: AG_RX15494_1663_19

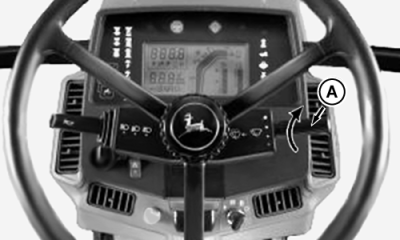

Rotate switch (A) to activate four wiper positions:

Push end of switch toward the steering column to operate optional windshield washer.

Fill washer reservoir (B) at left-rear of tractor cab. Use non-freezing solvent to prevent damage to washer system in cold temperatures.

Push switch (C) to operate optional rear washer and wiper.

AG,RX15494,1663 -19-12JUN00-1/1
