Using Foldable ROPs

CAUTION: Avoid personal injury or death. Keep foldable ROPS in the fully extended and locked position. If the tractor is operated with ROPS folded, drive with extreme caution. DO NOT use seat belt with the ROPS folded.

Return the ROPS to the locked raised position under normal operating conditions and always fasten your seat belt.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, is involved in an overturn, or is altered by welding, bending, drilling, or cutting. A damaged ROPS should be replaced, not reused.

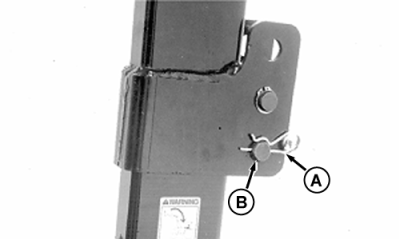

Remove retaining pin (A) and pin (B) on both sides of ROPS.

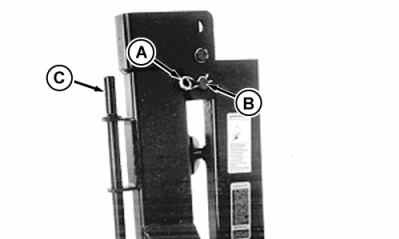

Pull ROPS handle (C) and turn upper half of ROPS up.

Secure ROPS with pin (B) and retaining pin (A) on both sides.

AG,RX15494,1679 -19-26AUG99-1/1
