Operating PowrQuad Transmission With Left-Hand Reverser

The PowrQuad ™ transmission with reverser offers a three lever shift pattern:

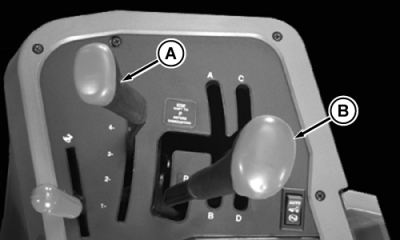

The range-shift lever (B) is used to select one of four ranges or PARK position.

Use the clutch to move from one range to another or to and from the PARK position.

Gear-shift lever (A) is used to select the desired speed.

Move lever for full power shifts within each range (1-4, forward and reverse).

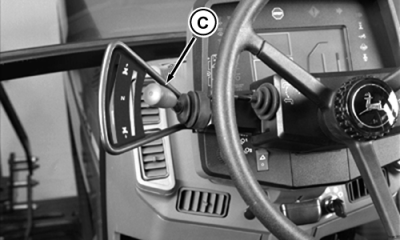

Forward/Reverse shuttle lever (C) provides:

Fully modulated shuttle shift capability between forward and reverse.

Neutral position is detented so lever cannot be inadvertently bumped into gear. Pull shuttle lever toward operator, then upward to move forward. Move lever downward for reverse.

Forward/Reverse shuttle lever automatically returns to neutral when the range-shift lever is placed in PARK.
Cold Weather Operation

Cold oil can affect engagement of forward/reverse lever. Operator may have to engage forward/reverse lever several times before tractor will move.
Disabled Mode

The disabled mode provides limited transmission function in case of malfunction. If reverser lever will not stay in direction (forward or reverse), hold reverser lever in the desired direction. If tractor will move, hold lever long enough to get tractor to a service facility. If tractor will not move, see your John Deere Dealer.
