Using Hitch Dampening

Hitch dampening prevents the tractor from "pitching" when it is traveling with a raised implement.

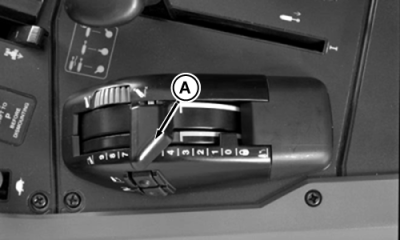

Move the control lever (A), with the engine running, to the position that corresponds to the position of the draft links, to activate the dampening function. Then, pull lever back to the transport lock position.

NOTE: The rate-of-drop control must NOT be in far left position.

Push the control lever forward from the transport lock position to switch off the dampening function.

NOTE: Using the remote control and switching off the engine both have the effect of switching off the dampening function.
